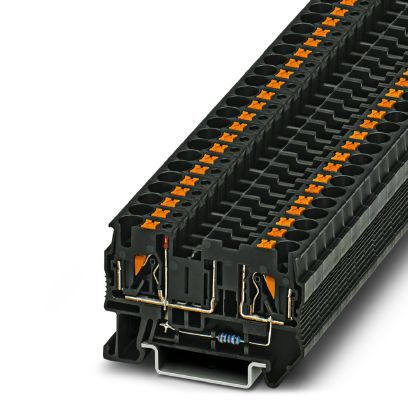

Phoenix Contact 3208964 Fuse Modular Terminal Block
The PHOENIX CONTACT PT 4-FSI/F-LED 24 is a fuse modular terminal block designed for efficient and safe power distribution in industrial environments. Its push-in connection simplifies wiring, while the integrated fuse provides overcurrent protection. The LED indicator allows for quick visual assessment of the circuit's status. This terminal block is ideal for applications in automation, control systems, and power distribution panels where space is limited and reliable performance is critical. It supports a wide range of conductor sizes and offers robust insulation for enhanced safety.
Phoenix Contact 3208964 Fuse Modular Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: black
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Fuse: Type F (miniature)
- Fuse type: Flat
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum current with single arrangement: 15 A
- Voltage LED: 24 V DC
- Current LED: 2 mA
- Maximum load current: 15 A
- Nominal current IN: 10 A
- Nominal voltage UN: 24 V
- Open side panel: Yes
- Width: 6.2 mm
- Length: 56 mm
- Height NS 35/7,5: 36.5 mm
- Height NS 35/15: 44 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 1 mm²
- Connection method: Push-in connection
- Minimum stripping length: 10 mm
- Maximum stripping length: 12 mm
- Internal cylindrical gage: A4
- Connection in acc. with standard: CSA
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141116
- eCl@ss 6.0: 27141116
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- ETIM 2.0: EC000897
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
