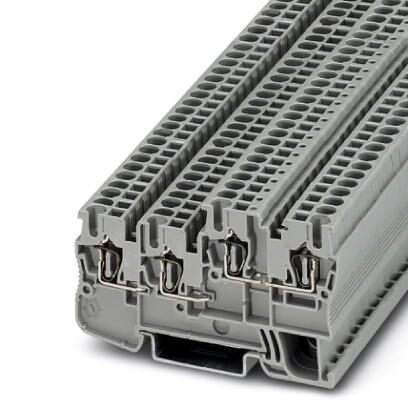

Phoenix Contact 3209015 Sensor and Actuator Terminal Block
This is a Phoenix Contact sensor and actuator terminal block designed for modular connections. It features a 3-level configuration with a current load capacity of 18A and a voltage rating of 250 V. Suitable for wire sizes from #28 to #12 AWG. The terminal block is gray in color and ideal for automation, control systems, and wiring of actuators and sensors. It offers reliable spring-cage connections, open side panels for easy access, and is UL and IEC recognized, making it suitable for industrial environments and rail vehicle applications.
Phoenix Contact 3209015 Sensor and Actuator Terminal Block Specifications:
- Nominal voltage: 250 V
- Rated load current: 18 A
- Cross section: 0.08 mm² - 4 mm²
- Wire Range: #28 - #12 AWG
- Color: Gray
- Material: PA (Polyamide)
- Flammability rating: UL 94VO
- Surge voltage: 4 kV
- Maximum power dissipation: 0.77 W
- Width: 5.2 mm
- Height: 44.5 mm (NS 35/7.5), 52 mm (NS 35/15)
- Length: 75 mm
- Connection method: Spring-cage
- Standards: IEC 60947-7-1, UL 94 VO
- Fire protection: DIN EN 45545-2 R22, R23, R24, R26
- UL Recognized / cUL Recognized / EAC / cULus Recognized
- Environmental: China RoHS compliant, unlimited use period
Buy the Buy Phoenix Contact Sensor and Actuator Terminal Block Part Number 3209015 Online
Secure your automation projects with the Phoenix Contact sensor and actuator terminal block. Featuring a 3-level design, 18A current capacity, 250V voltage rating, and compatible with wire sizes from #28 to #12 AWG, this gray terminal block offers quick spring-cage connections, UL and IEC recognition, and robust performance in industrial environments. Perfect for control systems and wiring actuators and sensors, it guarantees reliable, safe, and efficient electrical connections. Buy online now for immediate deployment and enhanced system reliability.
Order your Phoenix Contact 3-Level Sensor and Actuator Terminal Block 3209015 today and ensure reliable, safe connections for your industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3209015?
You can click on the BUY or RFQ button to purchase 3209015 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3209015?
You can download the 3209015 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3209015?
Phoenix Contact
