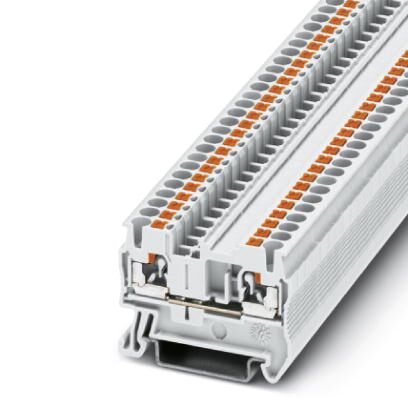

Phoenix Contact 3209514 Feed-through Terminal Block
The PHOENIX CONTACT PT 2,5 WH feed-through terminal block is designed for reliable and efficient electrical connections. Its push-in connection simplifies wiring, eliminating the need for tools. The compact design allows for space-saving installation, while the front connection facilitates wiring in confined areas. The terminal block's versatility makes it suitable for a wide range of industrial applications, including railway systems, machine building, plant engineering, and the process industry. It is characterized by its robust construction, high voltage and current handling capabilities, and compliance with relevant industry standards.
Phoenix Contact 3209514 Feed-through Terminal Block Specifications:
- Number of positions: 1
- Number of levels: 1
- Number of connections: 2
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: white
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum load current: 28 A (with 4 mm² conductor cross section)
- Nominal current IN: 24 A (at 2.5 mm²)
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Packing unit: 1 STK
- Minimum order quantity: 50 STK
- Weight per Piece (excluding packing): 7.200 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Connection method: Push-in connection
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A3
- Connection in acc. with standard (CSA): CSA
- Connection in acc. with standard (UL Recognized): UL Recognized
- Connection in acc. with standard (IEC/EN 60079-7): IEC/EN 60079-7
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
