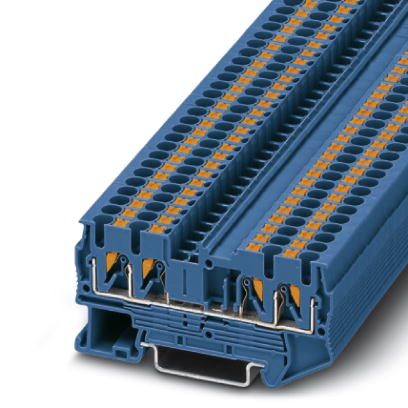

Phoenix Contact 3209581 Feed-Through Terminal Block
The PHOENIX CONTACT PT 2,5-QUATTRO BU feed-through terminal block is a versatile solution for connecting conductors in industrial environments. Its push-in connection simplifies wiring, while the compact design allows for space-saving installations. Designed for applications in the railway industry, machine building, and plant engineering, this terminal block provides reliable connections with a nominal voltage of 800V and a nominal current of 24A. It also incorporates a testing facility for easy maintenance and is characterized by its robust construction and compliance with various industry standards.
Phoenix Contact 3209581 Feed-Through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 4
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Designation: Level 1 above 1+2 below 1+2
- Maximum load current: 28 A
- Nominal current IN: 24 A
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1): 125 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 72.2 mm
- Height: 35.3 mm
- Height NS 35/7,5: 36.8 mm
- Height NS 35/15: 44.3 mm
- Connection method: Push-in connection
- Stripping length: 8 mm ... 10 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
