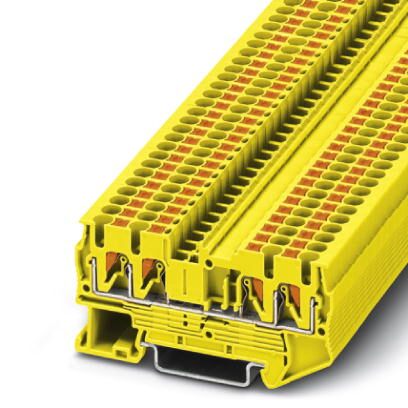

Phoenix Contact 3209583 Feed-through Terminal Block
The PHOENIX CONTACT PT 2,5-QUATTRO YE feed-through terminal block is a versatile solution for connecting multiple conductors in a compact space. Its push-in connection simplifies wiring, eliminating the need for tools and reducing installation time. Designed for use in railway, machine building, plant engineering, and process industries, this terminal block offers robust performance and reliability. It is characterized by its system features, compact design, and front connection, enabling wiring in confined spaces. The terminal block also includes a testing facility and is tested for railway applications, ensuring compliance with relevant standards and regulations. It is suitable for a wide range of applications requiring secure and efficient conductor connections.
Phoenix Contact 3209583 Feed-through Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 4
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Color: yellow
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Area of application: Railway industry, Machine building, Plant engineering, Process industry
- Rated surge voltage: 8 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Designation: Level 1 above 1+2 below 1+2
- Maximum load current: 28 A (with 4 mm² conductor cross section, rigid)
- Nominal current IN: 24 A (at a conductor cross section of 2.5 mm²; it must not be exceeded by the total current.)
- Nominal voltage UN: 800 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- End cover width: 2.2 mm
- Length: 72.2 mm
- Height: 35.3 mm
- Height NS 35/7,5: 36.8 mm
- Height NS 35/15: 44.3 mm
- Connection: 1 level
- Connection method: Push-in connection
- Stripping length: 8 mm ... 10 mm
- Connection in acc. with standard: IEC 60947-7-1
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Min. AWG conductor cross section, flexible: 26
- Max. AWG conductor cross section, flexible: 14
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 0.5 mm²
- Internal cylindrical gage: A3
