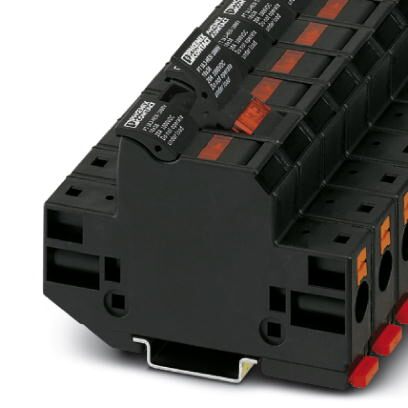

Phoenix Contact 3062143 Fuse Modular Terminal Block
The PHOENIX CONTACT PT 10,3-HESILED fuse modular terminal block is designed for reliable and efficient power distribution in industrial applications. Featuring a push-in connection, it accommodates conductors from 1.5 to 10 mm² (16-6 AWG) and supports a nominal current of 20A at 1000V. The compact design allows for space-saving installation, and the front connection simplifies wiring in tight areas. An additional test connection ensures easy verification of circuit integrity. Compliant with IEC 60269-1/-2 standards and boasting a V0 flammability rating, this terminal block provides robust performance and safety.
Phoenix Contact 3062143 Fuse Modular Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 10 mm²
- Color: black
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Fuse: Midget / 10.3 x 38
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: IIIa
- Maximum power dissipation: 3 W (Fuse insert)
- LED voltage range: 250 V AC ... 1000 V AC
- Connection in acc. with standard: IEC 60269-1/-2
- Maximum load current: 20 A (the current is determined by the fuse used)
- Nominal current IN: 20 A (the current is determined by the fuse used)
- Nominal voltage UN: 1000 V (the voltage is determined by the fuse used)
- Open side panel: No
- Width: 17.6 mm
- Length: 87 mm
- Height NS 35/7,5: 63 mm
- Height NS 35/15: 70.5 mm
- Conductor cross section solid min.: 1.5 mm²
- Conductor cross section solid max.: 10 mm²
- Conductor cross section flexible min.: 1.5 mm²
- Conductor cross section flexible max.: 10 mm²
- Conductor cross section AWG min.: 16
- Conductor cross section AWG max.: 6
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 1.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 10 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 1.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 10 mm²
- Connection method: Push-in connection
- Stripping length: 18 mm
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Substance compliance: No hazardous substances above threshold values
- Packing unit: 1 STK
- Minimum order quantity: 10 STK
- Custom tariff number: 85369095
- Country of origin: China
- Weight per Piece (excluding packing): 54.000 g
