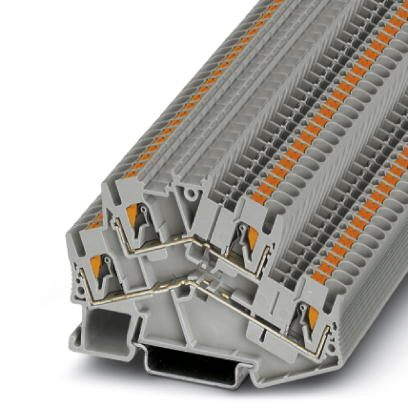

Phoenix Contact 3209604 double-level terminal block
This Phoenix Contact double-level terminal block features a compact 2-level design with push-in connection technology, supporting wire sizes from AWG 26 to 12. It has a rated current of 22A, a voltage of 500V, and dimensions of 78mm in length, 5.2mm in width, with heights of 55mm and 62.5mm for different mounting options. Made of durable PA material with UL 94 V-0 flammability rating, it ensures safe and reliable electrical connections in confined spaces. Suitable for industrial automation and control circuits, offering excellent mechanical stability and testing capabilities.
Phoenix Contact 3209604 double-level terminal block Specifications:
- Number of levels: 2
- Number of connections: 4
- Rated current: 22A
- Rated voltage: 500V
- Maximum load current: 24A with 4 mm² conductor cross section
- Connection type: Push-in
- Width: 5.2 mm
- Length: 78 mm
- Height: NS 35/7.5: 55 mm; NS 35/15: 62.5 mm
- Material: PA (Polyamide)
- Flammability rating: UL 94 V-0
- Conductor cross section: 0.14 mm² - 4 mm² (solid), 0.14 mm² - 2.5 mm² (flexible)
- Wire gauge: AWG 26 - 12
- Rated surge voltage: 6kV
- Overvoltage category: MI
- Insulation material temperature index: 125°C
- Connection standards: IEC 60947-7-1, CSA
- Environmental temperature range: -60°C to +125°C
- Test and certification: VDE, UL, ATEX, EAC
Buy the Buy Phoenix Contact Double-Level Terminal Block Part Number 3209604 Online
Purchase the Phoenix Contact double-level terminal block online to benefit from quick delivery, secure checkout, and genuine quality. Its robust push-in connection system simplifies wiring with solid and ferrule conductors, making it ideal for automation and control systems. The compact design allows wiring in tight spaces, while including test connections for enhanced troubleshooting. Certified for UL, CSA, and VDE standards, this terminal block supports a rated current of 22A and voltage of 500V, ensuring safe and reliable operation in demanding industrial environments. Buy now for dependable performance and ease of installation.
Order your Phoenix Contact PTTBS 2.5 terminal block today and ensure your electrical connections are safe, reliable, and easy to install in industrial automation projects.
Frequently Asked Questions
Where can I buy Phoenix Contact 3209604?
You can click on the BUY or RFQ button to purchase 3209604 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3209604?
You can download the 3209604 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3209604?
Phoenix Contact
