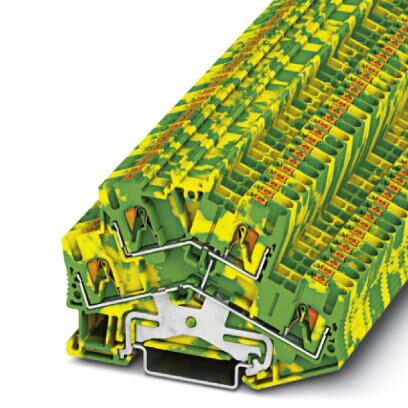

Phoenix Contact 3209620 Grounding Terminal Block
This is a Phoenix Contact grounding terminal block with a dual-level design, supporting wire sizes from 26 to 12 AWG and a cross section range of 0.14 mm² to 4 mm². It features push-in connection technology for easy wiring, a compact width of 5.2 mm, and is color-coded green-yellow for grounding and safety applications. The terminal block is made of PA with UL 94 V-0 flammability rating, rated for overvoltage up to 6kV, and designed to withstand temperatures up to 130°C. Suitable for confined spaces with front connection and test facilities.
Phoenix Contact 3209620 Grounding Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Conductor cross section: flexible 0.14 mm² to 2.5 mm², solid 0.14 mm² to 4 mm²
- Wire range: 26-12 AWG
- Width: 5.2 mm
- Length: 78 mm
- Height NS 35/7,5: 55 mm
- Height NS 35/15: 62.5 mm
- Material: PA, UL 94 V-0
- Rated surge voltage: 6 kV
- Overvoltage category: MI
- Temperature index of insulation: 130°C
- Flammability rating: UL 94 V-0
- Connection type: Push-in
- Standards: IEC 60947-7-2, CSA
- Environmental ratings: Cold -60°C withstand, shock and vibration tested per DIN EN standards
Buy the Phoenix Contact Series Grounding Terminal Block: 3209620
Purchase the grounding terminal block from Phoenix Contact online today. This dual-level, push-in connection terminal features a compact 5.2 mm width, supporting wire sizes from 26 to 12 AWG and conductor cross sections from 0.14 mm² to 4 mm². Made with UL 94 V-0 rated material, it ensures safety, durability, and ease of installation in confined spaces. Ideal for grounding applications, supporting overvoltage up to 6kV, and tested for shock and vibration resistance, ready for immediate deployment in your electrical projects.
Get Phoenix Contact 3209620 today—built for safety grounding, compact design, and reliable push-in connections in industrial control systems.
Frequently Asked Questions
Where can I buy Phoenix Contact 3209620?
You can click on the BUY or RFQ button to purchase 3209620 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3209620?
You can download the 3209620 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3209620?
Phoenix Contact
