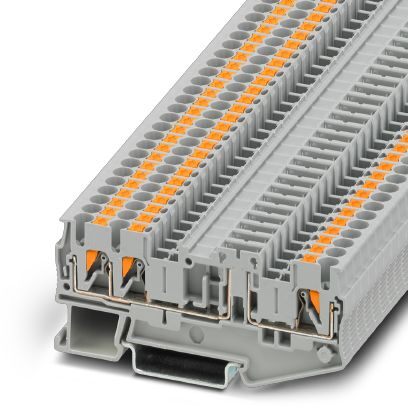

Phoenix Contact 3210193 Disconnect Terminal Block

Phoenix Contact 3210193 Disconnect Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 3
• Potentials: 1
• Nominal cross section: 2.5 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Area of application: Railway industry, Machine building, Plant engineering
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum load current: 16 A (with 4 mm² conductor cross section)
• Nominal current IN: 16 A
• Nominal voltage UN: 400 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of the test for mechanical stability of terminal points: Test passed
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section/weight: 0.14 mm² / 0.2 kg, 2.5 mm² / 0.7 kg, 4 mm² / 0.9 kg
• Result of tensile test: Test passed
• Conductor cross section tensile test: 0.14 mm²
• Tractive force setpoint: 10 N
• Conductor cross section tensile test 2.5 mm²: 50 N
• Conductor cross section tensile test 4 mm²: 60 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 1 N
• Result of voltage-drop test: Test passed
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing: 2.5 mm²
• Short-time current: 0.3 kA
• Result of aging test: Test passed
• Ageing test for screwless modular terminal block temperature cycles: 192
• Result of thermal test: Test passed
• Proof of thermal characteristics needle flame: 30 s
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 2, bogie mounted
• Test frequency: f1= 5 Hz to f2= 250 Hz
• ASD level: 6.12 (m/s² 2/Hz)
• Acceleration: 3.12 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Width: 5.2 mm
• End cover width: 2.2 mm
• Length: 81.9 mm
• Height: 35.20 mm
• Height NS 35/7,5: 36.7 mm
• Height NS 35/15: 44.2 mm
• Connection method: Push-in connection
• Connection in acc. with standard: IEC 60947-7-1
• Conductor cross section solid min.: 0.14 mm²
• Conductor cross section solid max.: 4 mm²
• Conductor cross section AWG min.: 26
• Conductor cross section AWG max.: 12
• Conductor cross section flexible min.: 0.14 mm²
• Conductor cross section flexible max.: 2.5 mm²
• Min. AWG conductor cross section, flexible: 26
• Max. AWG conductor cross section, flexible: 14
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 0.5 mm²
• Stripping length: 8 mm ... 10 mm
• Internal cylindrical gage: A3
