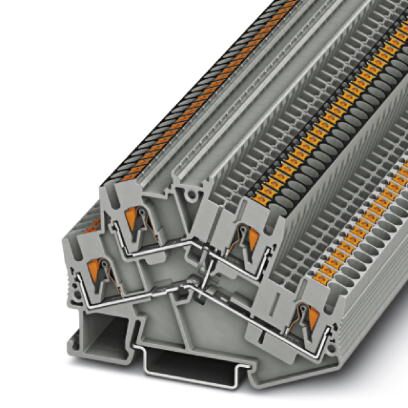

Phoenix Contact 3210211 Double Level Terminal Block
The PTTBS 2,5-PV double-level terminal block from PHOENIX CONTACT offers a robust and reliable solution for connecting multiple conductors in a compact space. Its push-in connection simplifies wiring, eliminating the need for tools and reducing installation time. The terminal block is designed for use in a variety of industrial applications, including power distribution, control systems, and automation equipment. It is characterized by its compact design, front connection capability, and the inclusion of an equipotential bonding feature for enhanced safety and performance. The terminal block is suitable for NS 35/7.5 and NS 35/15 mounting systems, providing flexibility in panel layout and integration.
Phoenix Contact 3210211 Double Level Terminal Block Specifications:
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Connection in acc. with standard: IEC 60947-7-1
- Nominal current IN: 22 A
- Maximum load current: 26 A
- Nominal voltage UN: 500 V
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Result of surge voltage test: Test passed
- Result of power-frequency withstand voltage test: Test passed
- Result of bending test: Test passed
- Tensile test result: Test passed
- Result of tight fit on support: Test passed
- Result of voltage-drop test: Test passed
- Result of temperature-rise test: Test passed
- Short circuit stability result: Test passed
- Result of aging test: Test passed
- Result of thermal test: Test passed
- Oscillation, broadband noise test result: Test passed
- Shock test result: Test passed
- Relative insulation material temperature index (Elec.; UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
- Width: 5.2 mm
- Length: 78 mm
- Height NS 35/7,5: 55 mm
- Height NS 35/15: 62.5 mm
- Connection method: Push-in connection
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
