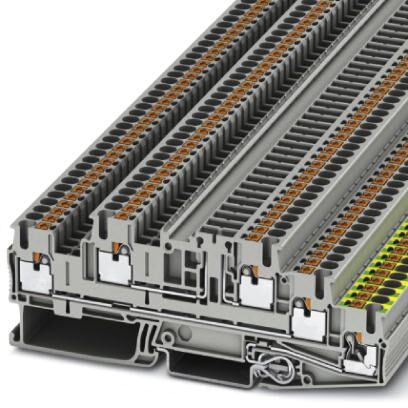

Phoenix Contact 3210539 Installation Ground Terminal Block

Phoenix Contact 3210539 Installation Ground Terminal Block Specifications:

• Number of levels: 3
• Number of connections: 5
• Nominal cross section: 2.5 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 4 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.77 W
• Nominal current IN: 22 A
• Maximum load current: 24 A
• Nominal voltage UN: 400 V
• Nominal current IN upper level: 16 A
• Maximum load current upper level: 16 A
• Nominal voltage UN upper level: 250 V
• Open side panel: Yes
• Shock protection test specification: DIN EN 50274
• Back of the hand protection: guaranteed
• Finger protection: guaranteed
• Result of surge voltage test: Test passed
• Surge voltage test setpoint: 7.3 kV
• Result of power-frequency withstand voltage test: Test passed
• Power frequency withstand voltage setpoint: 1.89 kV
• Result of bending test: Test passed
• Bending test rotation speed: 10 rpm
• Bending test turns: 135
• Bending test conductor cross section weight: 0.14 mm² / 0.2 kg, 2.5 mm² / 0.7 kg, 4 mm² / 0.9 kg
• Tensile test result: Test passed
• Conductor cross section tensile test: 0.14 mm²
• Tractive force setpoint: 10 N
• Conductor cross section tensile test 2.5 mm²: 50 N
• Conductor cross section tensile test 4 mm²: 60 N
• Result of tight fit on support: Test passed
• Tight fit on carrier: NS 35
• Setpoint: 1 N
• Result of voltage-drop test: Test passed
• Requirements voltage drop: ≤ 3.2 mV
• Result of temperature-rise test: Test passed
• Short circuit stability result: Test passed
• Conductor cross section short circuit testing 2.5 mm²: 0.3 kA
• Conductor cross section short circuit testing 4 mm²: 0.18 kA
• Result of aging test: Test passed
• Ageing test for screwless modular terminal block temperature cycles: 192
• Result of thermal test: Test passed
• Proof of thermal characteristics needle flame effective duration: 30 s
• Oscillation broadband noise test result: Test passed
• Test specification oscillation broadband noise: DIN EN 50155
• Test spectrum: Service life test category 2
• ASD level: 6.12 m/s²
• Acceleration: 3.12 g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis
• Relative insulation material temperature index Elec UL 746 B: 130 °C
• Temperature index of insulation material DIN EN 60216-1: 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles DIN 5510-2: Test passed
• Flame test method DIN EN 60695-11-10: V0
• Oxygen index DIN EN ISO 4589-2: >32 %
• NF F16-101 NF F10-102 Class I: 2
• NF F16-101 NF F10-102 Class F: 2
• Surface flammability NFPA 130 ASTM E 162: passed
• Specific optical density of smoke NFPA 130 ASTM E 662: passed
• Smoke gas toxicity NFPA 130 SMP 800C: passed
• Calorimetric heat release NFPA 130 ASTM E 1354: 28 MJ/kg
• Fire protection for rail vehicles DIN EN 45545-2 R22: HL 1 - HL 3
• Fire protection for rail vehicles DIN EN 45545-2 R23: HL 1 - HL 3
• Fire protection for rail vehicles DIN EN 45545-2 R24: HL 1 - HL 3
• Fire protection for rail vehicles DIN EN 45545-2 R26: HL 1 - HL 3
• Width: 5.2 mm
• Length: 118 mm
• Height NS 35/7,5: 42.3 mm
• Height NS 35/15: 49.8 mm
• Packing unit: 1 STK
• Minimum order quantity: 50 STK
• Custom tariff number: 85369010
• Country of origin: Poland
