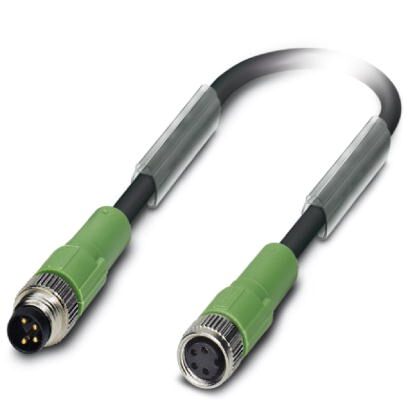

Phoenix Contact SAC4PM8MS15PURM8FS 4-Position Sensor Cable
The PHOENIX CONTACT SAC-4P-M 8MS/1 5-PUR/M 8FS is a 4-position sensor/actuator cable designed for reliable and flexible connections in industrial environments. It features a 1.5-meter length, a durable PUR halogen-free cable, and M8 connectors on both ends. The cable is suitable for applications requiring resistance to oil, hydrolysis, and microbes, and is commonly used in automated machinery, sensors, and actuators. Its robust construction and halogen-free properties ensure long-term performance and safety.
Phoenix Contact SAC4PM8MS15PURM8FS 4-Position Sensor Cable Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 47.6 g
- Custom tariff number: 85444290
- Country of origin: Germany
- Length of cable: 1.5 m
- Ambient temperature (operation): -25 °C ... 90 °C (Plug / socket)
- Degree of protection: IP65, IP67, IP68
- Rated current at 40°C: 4 A
- Rated voltage: 30 V
- Number of positions: 4
- Insulation resistance: ≥ 100 GΩ*km (at 20 °C)
- Coding: A - standard
- Standards/regulations: M8 connector IEC 61076-2-104
- Status display: No
- Protective circuit/component: Unwired
- Overvoltage category: II
- Pollution degree: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.2 Nm (M8 connectors)
- Flammability rating according to UL 94: HB
- Contact material: CuSn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Cable type: PUR halogen-free black
- Cable type (abbreviation): PUR
- Cable abbreviation: Li9Y11Y-HF
- UL AWM style: 20549
- Conductor cross section: 4x 0.25 mm² (signal line)
- AWG signal line: 24
- Conductor structure signal line: 32x 0.10 mm
- Core diameter including insulation: 1.17 mm ±0.02 mm (signal line)
- Thickness, insulation: ≥ 0.21 mm (Core insulation)
- Wire colors: brown, white, blue, black
- Overall twist: 4 wires, twisted
- External sheath, color: black-gray RAL 7021
- Outer sheath thickness: approx. 0.7 mm
- External cable diameter D: 4.4 mm ±0.15 mm
- Smallest bending radius, fixed installation: 22 mm
- Smallest bending radius, movable installation: 44 mm
- Number of bending cycles: 4000000
- Traversing path: 10 m
- Traversing rate: 3 m/s
- Acceleration: 5 m/s²
- Cable weight: 25 kg/km
- Outer sheath, material: PUR
- Material conductor insulation: PP
- Conductor material: Bare Cu litz wires
- Conductor resistance: max. 78 Ω/km (at 20 °C)
- Nominal voltage, cable: ≤ 300 V
- Test voltage, cable: ≥ 3000 V
- Flame resistance: in accordance with DIN UL-Style 20549
- Halogen-free: in accordance with DIN VDE 0472 part 815
- Resistance to oil: in accordance with DIN EN 60811-2-1
- Other resistance: Highly resistant to acids, alkaline solutions and solvents, hydrolysis and microbe resistant, partly UV-resistant in accordance with DIN EN ISO 4892-2-A
- Ambient temperature (operation) cable: -40 °C ... 80 °C (cable, fixed installation), -25 °C ... 80 °C (cable, flexible installation)
