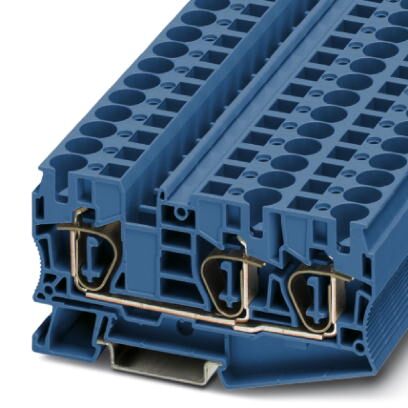

Phoenix Contact 3035292 Feed-through Terminal Block

Phoenix Contact 3035292 Feed-through Terminal Block Specifications:

• Number of levels: 1
• Number of connections: 3
• Nominal voltage: 1000 V
• Nominal current: 57 A
• Connection method: Spring-cage connection
• Cross section: 0.2 - 16 mm²
• AWG: 24 - 6
• Width: 10.2 mm
• Color: blue
• Mounting type: NS 35/7,5, NS 35/15
• Packing unit: 1 STK
• Minimum order quantity: 25 STK
• GTIN: 4046356100878
• Weight per Piece: 39.050 g
• Custom tariff number: 85369010
• Country of origin: Poland
• Potentials: 1
• Nominal cross section: 10 mm²
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Area of application: Railway industry, Machine building, Plant engineering
• Rated surge voltage: 8 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 1.82 W
• Maximum load current: 57 A
• Nominal current IN: 57 A (with 16 mm² conductor cross section)
• Nominal voltage UN: 1000 V
• Open side panel: Yes
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 27,5 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• End cover width: 2.2 mm
• Length: 95.4 mm
• Height NS 35/7,5: 50.3 mm
• Height NS 35/15: 57.8 mm
• Connection in acc. with standard: IEC 60947-7-1
• Conductor cross section solid min.: 0.2 mm²
• Conductor cross section solid max.: 16 mm²
• Conductor cross section AWG min.: 24
• Conductor cross section AWG max.: 6
• Conductor cross section flexible min.: 0.2 mm²
• Conductor cross section flexible max.: 10 mm²
• Min. AWG conductor cross section, flexible: 24
• Max. AWG conductor cross section, flexible: 8
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 10 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 10 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.: 1.5 mm²
• 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.: 2.5 mm²
• Stripping length: 18 mm
• Internal cylindrical gage: A6
