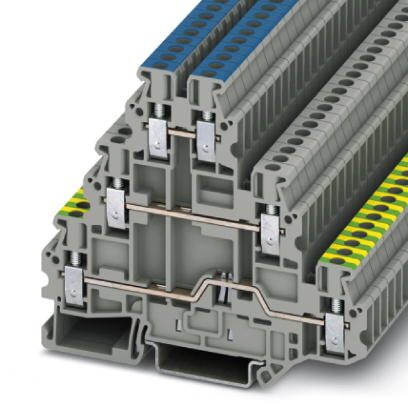

Phoenix Contact 3214291 Ground Modular Terminal Block
The PHOENIX CONTACT UT 2,5-PE/L/N ground modular terminal block provides a robust and space-saving solution for electrical connections. Its three-level design maximizes wiring density, while the provision of function shafts allows for quick and versatile potential distribution. Large-surface labeling ensures clear identification of each terminal point. This terminal block is ideal for applications requiring a high number of connections in a compact footprint, such as industrial control panels, power distribution systems, and automation equipment. It is designed for reliable performance and ease of use, contributing to efficient and organized electrical installations.
Phoenix Contact 3214291 Ground Modular Terminal Block Specifications:
- Number of levels: 3
- Number of connections: 6
- Nominal cross section: 2.5 mm²
- Color: gray
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 0.77 W
- Connection in acc. with standard: CSA
- Nominal current IN: 19 A
- Maximum load current: 24 A
- Nominal voltage UN: 500 V
- Open side panel: Yes
- Relative insulation material temperature index (Elec.; UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Width: 5.2 mm
- Length: 90 mm
- Height NS 35/7,5: 77.5 mm
- Height NS 35/15: 85 mm
- Note: Please observe the current carrying capacity of the DIN rails.
- Connection method: Screw connection
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
- Stripping length: 9 mm
- Internal cylindrical gage: A3
- Screw thread: M3
- Tightening torque, min: 0.5 Nm
- Tightening torque max: 0.6 Nm
