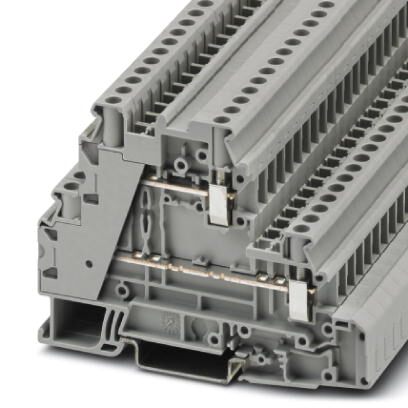

Phoenix Contact 3214362 Multi-Level Terminal Block
The PHOENIX CONTACT UT 4-L/L multi-level terminal block provides a reliable and space-saving solution for connecting multiple circuits. Designed for use on NS 35/7.5 and NS 35/15 mounting rails, this terminal block offers a secure connection with a tightening torque of 0.6-0.8 Nm. It is ideal for applications requiring multiple connections in a compact footprint, such as industrial control panels, power distribution systems, and automation equipment. The terminal block supports conductor cross-sections from 0.14 mm² to 6 mm² (AWG 26-10) and offers excellent insulation and protection against voltage fluctuations.
Phoenix Contact 3214362 Multi-Level Terminal Block Specifications:
- Base Article Number: 3214362
- Number of Levels: 2
- Number of Connections: 4
- Potentials: 2
- Nominal Cross Section: 4 mm²
- Color: gray
- Mounting Type: NS 35/7,5; NS 35/15
- Insulating Material: PA
- Flammability Rating UL 94: V0
- Rated Surge Voltage: 6 kV
- Degree of Pollution: 3
- Overvoltage Category: III
- Insulating Material Group: I
- Maximum Power Dissipation: 1.02 W
- Maximum Load Current: 36 A
- Nominal Current IN: 30 A
- Nominal Voltage UN: 500 V
- Open Side Panel: No
- Shock Protection Test Specification: DIN EN 50274 (VDE 0660-514):2002-11
- Finger Protection: guaranteed
- Result of Surge Voltage Test: Test passed
- Surge Voltage Test Setpoint: 7.3 kV
- Result of Power-Frequency Withstand Voltage Test: Test passed
- Power Frequency Withstand Voltage Setpoint: 1.89 kV
- Result of Mechanical Stability Test: Test passed
- Result of Bending Test: Test passed
- Bending Test Rotation Speed: 10 rpm
- Bending Test Turns: 135
- Bending Test Conductor Cross Section/Weight: 0.14 mm² / 0.2 kg; 4 mm² / 0.9 kg; 6 mm² / 1.4 kg
- Result of Tensile Test: Test passed
- Conductor Cross Section Tensile Test: 0.14 mm²; 4 mm²; 6 mm²
- Tractive Force Setpoint: 10 N; 60 N; 80 N
- Result of Tight Fit on Support: Test passed
- Tight Fit on Carrier: NS 35
- Setpoint: 1 N
- Result of Voltage-Drop Test: Test passed
- Requirements Voltage Drop: ≤ 3.2 mV
- Result of Temperature-Rise Test: Test passed
- Short Circuit Stability Result: Test passed
- Conductor Cross Section Short Circuit Testing: 4 mm²; 6 mm²
- Short-Time Current: 0.48 kA; 0.72 kA
- Result of Thermal Test: Test passed
- Proof of Thermal Characteristics: 30 s
- Oscillation Broadband Noise Test Result: Test passed
- Test Specification Oscillation: DIN EN 50155 (VDE 0115-200):2008-03
- Test Spectrum: Service life test category 1, class B, body mounted
- Test Frequency: f1= 5 Hz to f2= 150 Hz
- ASD Level: 0.964 m/s²
- Acceleration: 0.58 g
- Test Duration per Axis: 5 h
- Test Directions: X-, Y- and Z-axis
- Relative Insulation Material Temperature Index: 130 °C
- Temperature Index of Insulation Material: -60 °C
- Width: 6.2 mm
- Length: 92.7 mm
- Height: 60.1 mm
- Height NS 35/7,5: 61.7 mm
- Height NS 35/15: 69.2 mm
- Connection Method: Screw connection
- Screw Thread: M3
- Stripping Length: 9 mm
- Tightening Torque Min: 0.6 Nm
- Tightening Torque Max: 0.8 Nm
- Conductor Cross Section Solid Min: 0.14 mm²
- Conductor Cross Section Solid Max: 6 mm²
- Conductor Cross Section AWG Min: 26
- Conductor Cross Section AWG Max: 10
- Conductor Cross Section Flexible Min: 0.14 mm²
- Conductor Cross Section Flexible Max: 6 mm²
