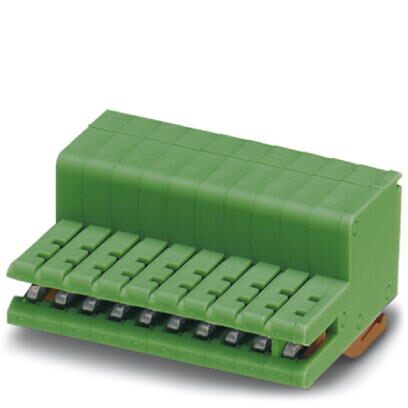

Phoenix Contact ZEC1012ST35C1R112 PCB Connector
The Phoenix Contact ZEC 1 0/12-ST-3 5 C1 R1 12 is a versatile printed-circuit board connector suitable for a wide range of industrial applications. Its direct connection capability eliminates the need for additional pin strips, simplifying PCB assembly and reducing component count. The spring-cage connection ensures reliable and vibration-resistant terminations, making it ideal for demanding environments. The chamfered plug-in area enhances insertion and withdrawal forces, improving assembly efficiency and reducing the risk of damage. This connector is designed for direct mounting and offers a robust solution for connecting various electronic components.
Phoenix Contact ZEC1012ST35C1R112 PCB Connector Specifications:
- Nominal current: 8 A
- Rated voltage (III/2): 200 V
- Number of positions: 12
- Pitch: 3.5 mm
- Connection method: Spring-cage connection
- Color: green
- Contact surface: Tin
- Mounting: Direct connector
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Weight per Piece: 14.04 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Dimension a: 42 mm
- Range of articles: ZEC 1,0/..-ST
- Insulating material group: I
- Rated surge voltage (III/3): 2.5 kV
- Rated surge voltage (III/2): 2.5 kV
- Rated surge voltage (II/2): 2.5 kV
- Rated voltage (III/3): 160 V
- Rated voltage (II/2): 320 V
- Connection in acc. with standard: EN-VDE
- Nominal cross section: 1 mm²
- Maximum load current: 8 A (with 1 mm² conductor cross section)
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Stripping length: 7 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 1 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 1 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 1 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 0.75 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 16
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 0.5 mm²
- Minimum AWG according to UL/CUL: 26
- Maximum AWG according to UL/CUL: 16
- eCl@ss 4.0: 272607xx
- eCl@ss 4.1: 27260701
- eCl@ss 5.0: 27260701
- eCl@ss 5.1: 27260701
- eCl@ss 6.0: 27260704
- eCl@ss 7.0: 27440402
- eCl@ss 8.0: 27440309
- ETIM 3.0: EC001121
- ETIM 4.0: EC002637
- ETIM 5.0: EC002638
- UNSPSC 6.01: 30211810
- UNSPSC 7.0901: 39121409
- UNSPSC 11: 39121409
- UNSPSC 12.01: 39121409
- UNSPSC 13.2: 39121409
