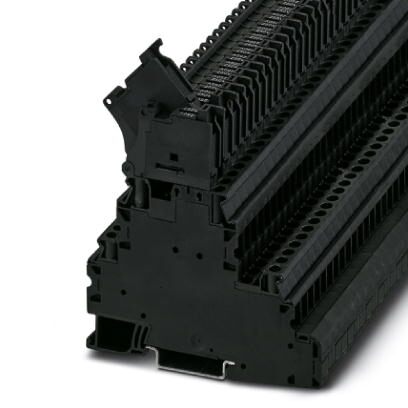

Phoenix Contact 3214368 Fuse Modular Terminal Block
The PHOENIX CONTACT UT 4-L/HESILA 250 fuse modular terminal block provides a reliable solution for circuit protection in industrial applications. This terminal block is designed to accept a G/5 x 20 fuse, offering protection against overcurrent and short circuits. It features a screw connection for secure conductor termination, accommodating wire sizes from 0.14 mm² to 4 mm² (AWG 26-10). The block is rated for a nominal current of 30A and a nominal voltage of 500V, making it suitable for a wide range of applications. Its NS 35/7.5 and NS 35/15 mounting capability ensures easy integration into DIN rail systems. The terminal block's robust construction and high-quality materials ensure long-term reliability and performance in demanding industrial environments.
Phoenix Contact 3214368 Fuse Modular Terminal Block Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 50 STK
- GTIN: 4055626034003
- Weight per Piece (excluding packing): 33.200 g
- Custom tariff number: 85369095
- Country of origin: Poland
- Number of levels: 2
- Number of connections: 4
- Nominal cross section: 4 mm²
- Color: black
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Maximum power dissipation for nominal condition: 1.6 W
- Fuse: G / 5 x 20
- Fuse type: Glass / ceramics / ...
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation: max. 1.6 W
- LED voltage range: 110 V AC ... 250 V AC
- LED current range: 0.41 mA ... 0.96 mA
- Connection in acc. with standard: IEC 60947-7-2/IEC 60947-7-3
- Maximum load current: 36 A
- Nominal current IN: 30 A
- Nominal voltage UN: 500 V
- Maximum load current upper level: 6.3 A
- Nominal current IN upper level: 6.3 A
- Open side panel: No
- Relative insulation material temperature index: 130 °C
- Temperature index of insulation material: 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles: Test passed
- Flame test method: V0
- Oxygen index: >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130: passed
- Specific optical density of smoke NFPA 130: passed
- Smoke gas toxicity NFPA 130: passed
- Calorimetric heat release NFPA 130: 28 MJ/kg
- Fire protection for rail vehicles: HL 1 - HL 3
- Width: 6.2 mm
- Length: 92.7 mm
- Height NS 35/7,5: 88.9 mm
- Height NS 35/15: 96.4 mm
- Conductor cross section solid min.: 0.14 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.14 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 26
- Conductor cross section AWG max.: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.14 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.14 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.14 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 1.5 mm²
- Connection method: Screw connection
- Stripping length: 9 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
