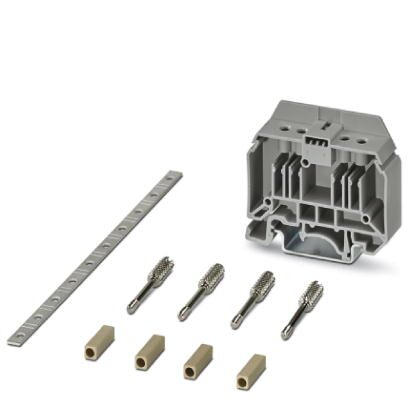

Phoenix Contact 3215067 Short Circuit Kit
The PHOENIX CONTACT CARRIER 35-13 KIT (part number 3215067) is a short-circuit kit specifically engineered for current transformer applications. Designed for use with DIN rail mounted RBO/RSC 5 feed-through terminals, this kit provides a crucial safety measure by minimizing the risk of damage due to short circuits. It's a vital component in industrial automation, power distribution, and electrical panel building, ensuring the reliable and safe operation of current transformer systems. The kit's robust construction and adherence to stringent industry standards make it suitable for demanding environments and contribute to overall system integrity.
Phoenix Contact 3215067 Short Circuit Kit Specifications:
- Number of positions: 12
- Width: 13 mm
- Length: 53.3 mm
- Height NS 35/7,5: 47 mm
- Height NS 35/15: 54.6 mm
- Pitch: 13 mm
- Maximum load current: 5 A
- Relative insulation material temperature index (Elec., UL 746 B): 130 °C
- Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
- Static insulating material application in cold: -60 °C
- Behavior in fire for rail vehicles (DIN 5510-2): Test passed
- Flame test method (DIN EN 60695-11-10): V0
- Oxygen index (DIN EN ISO 4589-2): >32 %
- NF F16-101, NF F10-102 Class I: 2
- NF F16-101, NF F10-102 Class F: 2
- Surface flammability NFPA 130 (ASTM E 162): passed
- Specific optical density of smoke NFPA 130 (ASTM E 662): passed
- Smoke gas toxicity NFPA 130 (SMP 800C): passed
- Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Custom tariff number: 85369010
- Country of origin: China
- eCl@ss 10.0.1: 27141190
- eCl@ss 4.0: 27141100
- eCl@ss 4.1: 27141100
- eCl@ss 5.0: 27141100
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141190
- eCl@ss 8.0: 27141190
- eCl@ss 9.0: 27141190
- ETIM 3.0: EC001121
- ETIM 4.0: EC000897
- ETIM 5.0: EC002848
- ETIM 6.0: EC002848
- ETIM 7.0: EC002848
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
Buy the 3215067 PHOENIX CONTACT Short Circuit Kit | myMectronic
Purchase the PHOENIX CONTACT 3215067 Short Circuit Kit securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact 3215067?
You can click on the BUY or RFQ button to purchase 3215067 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3215067?
You can download the 3215067 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3215067?
Phoenix Contact
