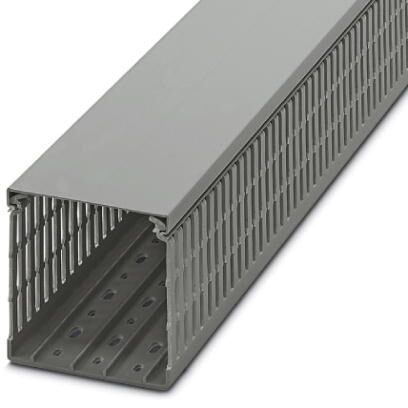

Phoenix Contact 3240205 Cable Duct CD 100X100
The Phoenix Contact CD 100X100 cable duct provides a robust and efficient solution for cable management in various industrial settings. Constructed from PVC, this cable duct measures 100 mm in width and height, with a length of 2000 mm. Its design incorporates features like a predetermined breaking point for burr-free bar removal and wire retaining clips for secure conductor placement. The cutter enables easy, burr-free cutting with minimum effort. It is suitable for applications where organized and protected cable routing is essential, contributing to improved safety and operational efficiency.
Phoenix Contact 3240205 Cable Duct CD 100X100 Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 6 pc
- Weight per Piece (excluding packing): 2440.0 g
- Custom tariff number: 39259020
- Country of origin: Germany
- Length (b): 2000 mm
- Width (a): 100 mm
- Height: 100 mm
- Ambient temperature (operation): -5 °C ... 60 °C
- Color: gray
- Components: Lead-free
- Flammability rating according to UL 94: V0
- Material: PVC
- Halogen-free: no
- Connection in acc. with standard: CSA
- eCl@ss 4.0: 27140602
- eCl@ss 4.1: 27140602
- eCl@ss 5.0: 27140602
- eCl@ss 5.1: 27140602
- eCl@ss 6.0: 27400703
- eCl@ss 7.0: 27400703
- eCl@ss 8.0: 27400703
- ETIM 2.0: EC000012
- ETIM 3.0: EC000012
- ETIM 4.0: EC000012
- ETIM 5.0: EC000012
- UNSPSC 6.01: 30101815
- UNSPSC 7.0901: 30101815
- UNSPSC 11: 30101815
- UNSPSC 12.01: 30101815
- UNSPSC 13.2: 30101815
- Approvals: CSA / UL Recognized / VDE Zeichengenehmigung
