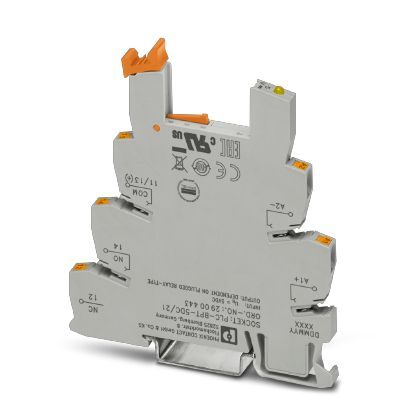

Phoenix Contact 2900443 PLC Relay Base
The Phoenix Contact PLC-BPT- 5DC/21 relay base provides a reliable platform for mounting relays in industrial automation systems. Designed for 6.2mm relays, this base offers a push-in connection for easy wiring and is compatible with DIN rail NS 35/7.5 mounting. It incorporates a damping diode and polarity protection diode for enhanced protection and includes an LED for status indication. Separating plates (PLC-ATP) are recommended for voltages exceeding 250V to ensure safe isolation between modules. This component is ideal for applications requiring secure and efficient relay integration in PLC systems.
Phoenix Contact 2900443 PLC Relay Base Specifications:
- Packing unit: 1 STK
- Minimum order quantity: 10 STK
- GTIN: 4046356507585
- Weight per Piece (excluding packing): 30.000 g
- Custom tariff number: 85366990
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 94 mm
- Nominal input voltage UN: 5 V DC
- Connection name (input side): Input side
- Connection method (input side): Push-in connection
- Stripping length (input side): 8 mm
- Conductor cross section solid (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input side): 26 ... 14
- Connection name (output side): Output side
- Stripping length (output side): 8 mm
- Conductor cross section solid (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output side): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output side): 26 ... 14
- Note: Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or FBST 500....
- Protective circuit: Damping diode, polarity protection diode
- Color: green
- Operating mode: 100% operating factor
- Connection in acc. with standard: CUL
- Flammability rating according to UL 94: V0
- Utilization restriction: EMC: class A product, see manufacturer's declaration in the download area
- eCl@ss 5.0: 27371603
- eCl@ss 5.1: 27371603
- eCl@ss 6.0: 27371603
- eCl@ss 7.0: 27371603
- eCl@ss 8.0: 27371603
- eCl@ss 9.0: 27371603
- ETIM 2.0: EC001456
- ETIM 3.0: EC001456
- ETIM 4.0: EC001456
- ETIM 5.0: EC001456
- ETIM 6.0: EC001456
- UNSPSC 6.01: 30211917
- UNSPSC 7.0901: 39121516
- UNSPSC 11: 39121516
- UNSPSC 12.01: 39121516
- UNSPSC 13.2: 39122326
- China RoHS: Environmentally Friendly Use Period = 50
