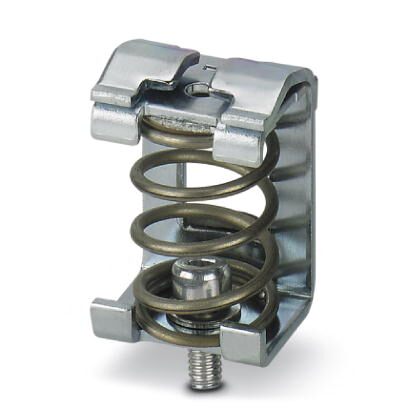

Phoenix Contact 3240214 Shield Connection Clamp
The Phoenix Contact SKS 14-D shield connection clamp is designed for direct application of cable shields to conductive mounting plates, offering a reliable grounding solution in electrical installations. Its spring-cage connection simplifies installation and maintenance, while its compatibility with various mounting types (NS 35 DIN rails, busbars, or conductive mounting plates) provides flexibility in system design. Suitable for cable diameters from 3 to 20 mm, this clamp is commonly used in industrial environments where effective shielding is crucial for minimizing electromagnetic interference and ensuring signal integrity. It is also compliant with environmental regulations, featuring an unlimited environmentally friendly use period.
Phoenix Contact 3240214 Shield Connection Clamp Specifications:
- Number of levels: 1
- Number of connections: 1
- Cable diameter: 3 mm ... 14 mm
- Color: silver
- Open side panel: No
- Length: 21 mm
- Width: 19 mm
- Height: 40.7 mm
- Connection method: Spring-cage connection
- Conductor cross section solid min.: 4 mm²
- Conductor cross section solid max.: 13.5 mm²
- Conductor cross section flexible min.: 4 mm²
- Conductor cross section flexible max.: 13.5 mm²
- Conductor cross section AWG min.: 10
- Conductor cross section AWG max.: 6
- Screw thread: M4
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 4.0: 27141100
- eCl@ss 4.1: 27141100
- eCl@ss 5.0: 27141100
- eCl@ss 5.1: 27141100
- eCl@ss 6.0: 27141100
- eCl@ss 7.0: 27141150
- eCl@ss 8.0: 27141150
- eCl@ss 9.0: 27141150
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000001
- ETIM 5.0: EC002020
- ETIM 6.0: EC002020
- ETIM 7.0: EC002020
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121432
- Packing unit: 1 pc
- Minimum order quantity: 10 pc
- Weight per Piece (excluding packing): 20.000 g
- Custom tariff number: 85369010
- Country of origin: Germany
