Phoenix Contact 3273114 Distribution Block
The Phoenix 3273114 distribution block is a versatile component for industrial electrical systems. Featuring a single-level design with 19 push-in connections, it supports conductor cross sections from 0.14 mm² to 4 mm², with a rated voltage of 690 V and current of 24 A. Its robust construction includes UL94V-0 rated insulation material, galvanized steel or aluminum mounting options, and comprehensive safety testing such as surge voltage and shock compliance. It allows multiple connection configurations, offers space-saving DIN rail mounting, and integrates easily for efficient wiring in complex electrical layouts.
Phoenix Contact 3273114 Distribution Block Specifications:
- Number of connections: 19
- Rated voltage: 690 V
- Rated current: 24 A
- Conductor cross section: 0.14 mm² - 4 mm²
- AWG: 26 - 12
- Width: 28.6 mm
- Height: 32.4 mm (NS 35/7.5), 30.4 mm (NS 35/15)
- Length: 58.1 mm
- Material: PA (insulating), galvanized steel or aluminum (mounting rails)
- Flammability rating: UL 94V-0
- Temperature range: -60°C to 105°C
- Surge voltage: 8KV
- Protection: Shock and finger protection, tested for mechanical stability
- Compliance: UL Recognized, cUL Recognized, IEC 60947-7-1, VDE

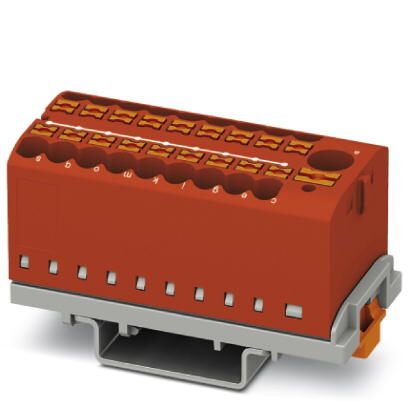

Buy the Buy Phoenix Contact Distribution Block Part Number 3273114 Online
Purchase the Phoenix Contact distribution block 3273114 online today for your industrial electrical projects. It offers 19 push-in connections supporting 690 V and 24 A, compact design for space savings, and robust construction for durability. Its versatile mounting options include DIN rail, direct, or adhesive mounting, making it suitable for complex layouts. Designed with safety in mind, it complies with UL 94V-0 flammability standards, ensures reliable performance under harsh conditions, and saves your time with tool-free conductor connections and ready-to-mount features. Upgrade your wiring system today.
Order your Phoenix Contact distribution block 3273114 today, featuring reliable push-in technology and versatile DIN rail mounting for efficient electrical wiring.
Frequently Asked Questions
Where can I buy Phoenix Contact 3273114?
You can click on the BUY or RFQ button to purchase 3273114 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part 3273114?
You can download the 3273114 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of 3273114?
Phoenix Contact
