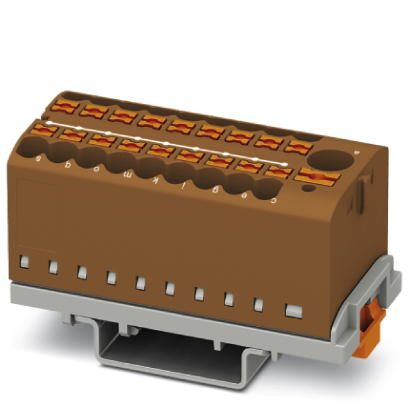

Phoenix Contact 3273120 Distribution Block
The Phoenix PTFIX 6/18X25-NS35 BN is a high-quality distribution and fixing block designed for secure and reliable electrical connections. It features a push-in connection method for quick installation, supporting up to 19 connections with a cross-section range of 0.14 mm² to 4 mm² (AWG 26 to 12). The block is suitable for DIN rail mounting or adhesive mounting, with space-saving transverse mounting capability. It complies with IEC 60947-7-1 and DIN EN 45545-2 fire protection standards, is UL and VDE approved, and provides a robust solution for industrial wiring setups.
Phoenix Contact 3273120 Distribution Block Specifications:
- Number of connections: 19
- Connection method: Push-in connection
- Cross section: 0.14 mm² - 4 mm²
- AWG: 26 - 12
- Width: 28.6 mm
- Height: 28.7 mm
- Nominal voltage: 300 V - 600 V depending on model
- Nominal current: 24 A
- Temperature index: 130°C
- Fire protection standards: DIN EN 45545-2 R22, R23, R24, R26
- Mounting type: DIN rail (NS 35/7.5, NS 35/15), adhesive mounting
- Certifications: UL Recognized, cUL Recognized, VDE approved, IECEE CB scheme
- Material: Insulation made of flame-retardant material, terminal connections in accordance with IEC 60947-7-1
- Stripping length: 10 mm - 12 mm
Buy the Phoenix Contact Series Distribution Block: 3273120
Purchase the Phoenix Contact distribution block online today to benefit from quick, tool-free push-in connection technology, ensuring fast installation and reliable contact. Its flexible mounting options, including DIN rail or adhesive mounting, provide space-saving solutions for complex industrial wiring setups. Designed to meet high standards such as IEC 60947-7-1 and fire protection regulations, this durable and versatile distribution block offers exceptional quality for electrical distribution applications. Order now for seamless wiring with top-tier safety and efficiency benefits.
Get Phoenix Contact 3273120 today—built for secure, efficient, and space-saving industrial wiring solutions.
