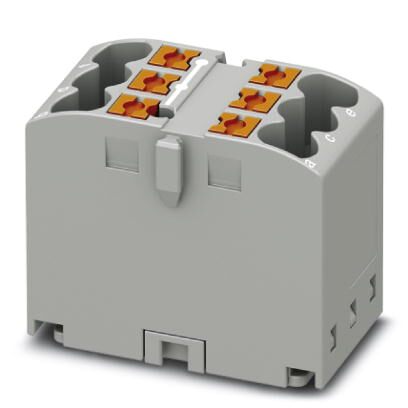

Phoenix Contact 3273264 Distribution Block 6 Circuit

Phoenix Contact 3273264 Distribution Block 6 Circuit Specifications:

• Packing unit: 1 STK
• Minimum order quantity: 10 STK
• GTIN: 4055626391977
• Weight per Piece (excluding packing): 12.000 g
• Custom tariff number: 85369010
• Country of origin: Poland
• Number of levels: 1
• Number of connections: 6
• Potentials: 1
• Nominal cross section: 2.5 mm²
• Color: gray
• Insulating material: PA
• Flammability rating according to UL 94: V0
• Rated surge voltage: 6 kV
• Degree of pollution: 3
• Overvoltage category: III
• Insulating material group: I
• Maximum power dissipation for nominal condition: 0.77 W
• Maximum load current: 24 A
• Nominal current IN: 24 A
• Nominal voltage UN: 500 V
• Open side panel: No
• Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
• Back of the hand protection: guaranteed
• Finger protection: guaranteed
• Oscillation, broadband noise test result: Test passed
• Test specification, oscillation, broadband noise: DIN EN 50155 (VDE 0115-200):2008-03
• Test spectrum: Service life test category 2, bogie-mounted
• Test frequency: f1= 5 Hz to f2= 250 Hz
• ASD level: 6.12 (m/s² 2/Hz)
• Acceleration: 30g
• Test duration per axis: 5 h
• Test directions: X-, Y- and Z-axis (pos. and neg.)
• Shock test result: Test passed
• Test specification, shock test: DIN EN 50155 (VDE 0115-200):2008-03
• Shock form: Half-sine
• Shock duration: 18 ms
• Number of shocks per direction: 3
• Relative insulation material temperature index (Elec., UL 746 B): 130 °C
• Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)): 130 °C
• Static insulating material application in cold: -60 °C
• Behavior in fire for rail vehicles (DIN 5510-2): Test passed
• Flame test method (DIN EN 60695-11-10): V0
• Oxygen index (DIN EN ISO 4589-2): >32 %
• NF F16-101, NF F10-102 Class I: 2
• NF F16-101, NF F10-102 Class F: 2
• Surface flammability NFPA 130 (ASTM E 162): passed
• Specific optical density of smoke NFPA 130 (ASTM E 662): passed
• Smoke gas toxicity NFPA 130 (SMP 800C): passed
• Calorimetric heat release NFPA 130 (ASTM E 1354): 28 MJ/kg
• Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
• Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
• Width: 15.6 mm
• Length: 28.2 mm
• Height: 21.2 mm
• Connection method: Push-in connection
• Connection in acc. with standard: IEC 60998-2-2
• Conductor cross section solid min.: 0.14 mm²
• Conductor cross section solid max.: 4 mm²
• Conductor cross section AWG min.: 26
• Conductor cross section AWG max.: 12
• Conductor cross section flexible min.: 0.14 mm²
• Conductor cross section flexible max.: 2.5 mm²
• Min. AWG conductor cross section, flexible: 26
• Max. AWG conductor cross section, flexible: 14
• Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule without plastic sleeve max.: 2.5 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.14 mm²
• Conductor cross section flexible, with ferrule with plastic sleeve max.: 2.5 mm²
• Stripping length: 8 mm ... 10 mm
• Internal cylindrical gage: A3
• China RoHS: Environmentally friendly use period: unlimited = EFUP-e
