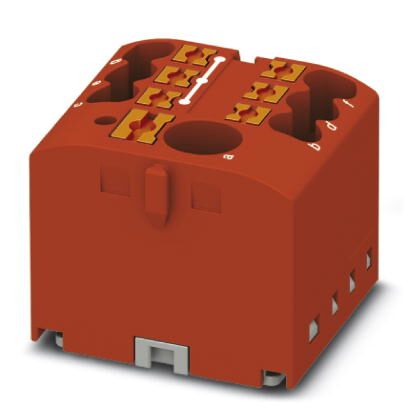

Phoenix Contact 3273334 Distribution Terminal Block
The Phoenix Contact PTFIX 6/6X2,5 RD distribution block is designed for efficient and reliable power distribution in industrial applications. It features a Push-in connection technology that eliminates the need for tools, saving time and effort during installation. The block's compact design allows for space-saving transverse mounting on DIN rails, optimizing valuable space. With its robust construction and multiple connection points, this distribution block is ideal for a wide range of electrical systems, ensuring safe and dependable power delivery.
Phoenix Contact 3273334 Distribution Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 7
- Potentials: 1
- Nominal cross section: 2.5 mm²
- Nominal cross section feed-in: 6 mm²
- Color: red
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Rated surge voltage: 6 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Maximum power dissipation for nominal condition: 1.31 W
- Maximum load current: 57 A
- Nominal current IN: 41 A
- Nominal voltage UN: 500 V
- Open side panel: No
- Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
- Finger protection: guaranteed
- Result of thermal test: Test passed
- Proof of thermal characteristics needle flame: 30 s
- Test specification oscillation: DIN EN 50155 (VDE 0115-200):2008-03
- Test frequency: f1= 5 Hz to f2= 250 Hz
- ASD level: 6.12 (m/s² 2/Hz)
- Acceleration: 3.12 g
- Test duration per axis: 5 h
- Test directions: X-, Y- and Z-axis
- Shock test result: Test passed
- Test specification shock: DIN EN 50155 (VDE 0115-200):2008-03
- Shock form: Half-sine
- Acceleration shock: 30g
- Shock duration: 18 ms
- Number of shocks per direction: 3
- Test directions shock: X-, Y- and Z-axis (pos. and neg.)
- Width: 25.2 mm
- Height: 21.2 mm
- Length: 28.2 mm
- Conductor cross section solid min: 0.14 mm²
- Conductor cross section solid max: 4 mm²
- Conductor cross section AWG min: 26
- Conductor cross section AWG max: 12
- Conductor cross section flexible min: 0.14 mm²
- Conductor cross section flexible max: 2.5 mm²
- Conductor cross section flexible with ferrule without plastic sleeve min: 0.14 mm²
- Conductor cross section flexible with ferrule without plastic sleeve max: 2.5 mm²
- Conductor cross section flexible with ferrule with plastic sleeve min: 0.14 mm²
- Conductor cross section flexible with ferrule with plastic sleeve max: 2.5 mm²
- Stripping length: 8 mm ... 10 mm
- Internal cylindrical gage: A3
