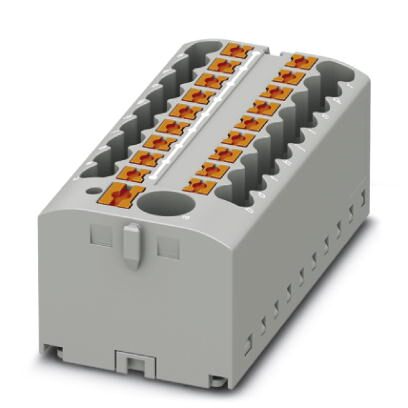

Phoenix Contact 3273374 Distribution Terminal Block
The Phoenix Contact PTFIX 6/18X2,5 GY distribution block is designed for efficient and reliable power distribution in industrial applications. Its push-in connection technology significantly reduces installation time, while the eleven color variants simplify wiring and troubleshooting. The block's flexible mounting options – DIN rail, direct, or adhesive – provide versatility in various environments. It is suitable for applications requiring a compact and robust terminal block solution, contributing to space savings on DIN rails and ensuring reliable power delivery.
Phoenix Contact 3273374 Distribution Terminal Block Specifications:
- Nominal Voltage: 500 V
- Nominal Current: 24 A
- Connection Method: Push-in connection
- Number of Connections: 19
- Conductor Cross Section: 0.14 mm² - 4 mm²
- AWG: 26 - 12
- Width: 56 mm
- Height: 21.2 mm
- Color: gray
- Mounting Type: for snapping onto a DIN rail adapter
- Flammability Rating: V0
- Rated Surge Voltage: 6 kV
- Maximum Load Current: 57 A (with 10 mm² conductor cross section)
- Nominal Current Feed-in: 41 A (with 6 mm² conductor cross section)
- Maximum Power Dissipation: 1.31 W
- Material: PA
- Custom Tariff Number: 85369010
- Country of Origin: Poland
- Minimum Order Quantity: 8 STK
- GTIN: 4055626392578
- Weight per Piece: 40.000 g
Buy the 3273374 PHOENIX CONTACT Distribution Terminal Block | myMectronic
Securely purchase the Phoenix Contact PTFIX 6/18X2,5 GY distribution block online for reliable power distribution.
