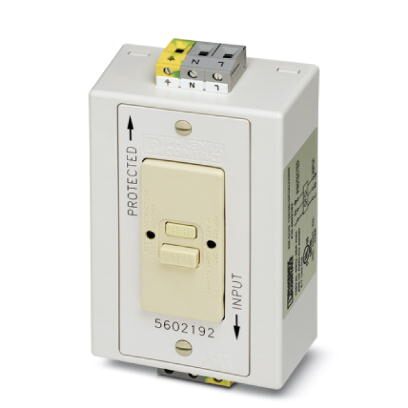

Phoenix Contact 5602192 Rail-mounted Power Connector
The Phoenix Contact EM-DUO120/20/GFI/AUX/NO (part number 5602192) is a robust rail-mounted power connector ideal for industrial applications requiring reliable power distribution and enhanced safety. It's designed for 120V AC at 20A and incorporates a ground fault circuit interruption (GFCI) feature to protect against shock hazards. The inclusion of auxiliary terminals provides flexibility for additional connections. This connector is mounted on a 35mm DIN rail, adhering to EN 60715 standards, and is suitable for use in the USA, Canada, Mexico, Bahamas, Bermuda, Columbia, Costa Rica, Ecuador, El Salvador, Panama, Puerto Rico, Taiwan, Venezuela, and the Virgin Islands. Its construction utilizes a polycarbonate & ABS blend for durability and features a white or ivory color.
Phoenix Contact 5602192 Rail-mounted Power Connector Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 321.4 g
- Custom tariff number: 85366990
- Country of origin: United States
- Width: 82 mm
- Height: 135 mm
- Depth: 49 mm
- Ambient temperature (operation): -35 °C ... 60 °C
- Nominal voltage UN: 125 V AC
- Nominal current IN: 20 A
- For country-specific use in: USA, Canada, Mexico, Bahamas, Bermuda, Columbia, Costa Rica, Ecuador, El Salvador, Panama, Puerto Rico, Taiwan, Venezuela, Virgin Islands
- Color: ivory
- Insulating material: Polycarbonate & ABS blend
- Standards/regulations: UL 508, CSA 22.2
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG max.: 10
- Connection method: Screw connection
- Stripping length: 8 mm
- Screw thread: M3
- eCl@ss 4.0: 27142305
- eCl@ss 4.1: 27142305
- eCl@ss 5.0: 27143412
- eCl@ss 5.1: 27143412
- eCl@ss 6.0: 27143412
- eCl@ss 7.0: 27440519
- eCl@ss 8.0: 27142305
- ETIM 2.0: EC001325
- ETIM 3.0: EC001325
- ETIM 4.0: EC001663
- ETIM 5.0: EC001663
- UNSPSC 6.01: 30211806
- UNSPSC 7.0901: 39121406
- UNSPSC 11: 39121406
- UNSPSC 12.01: 39121406
- UNSPSC 13.2: 39121406
- UL Listed: 30-10 AWG, 20 A, 125 V
- cUL Listed: 30-10 AWG, 20 A, 125 V
