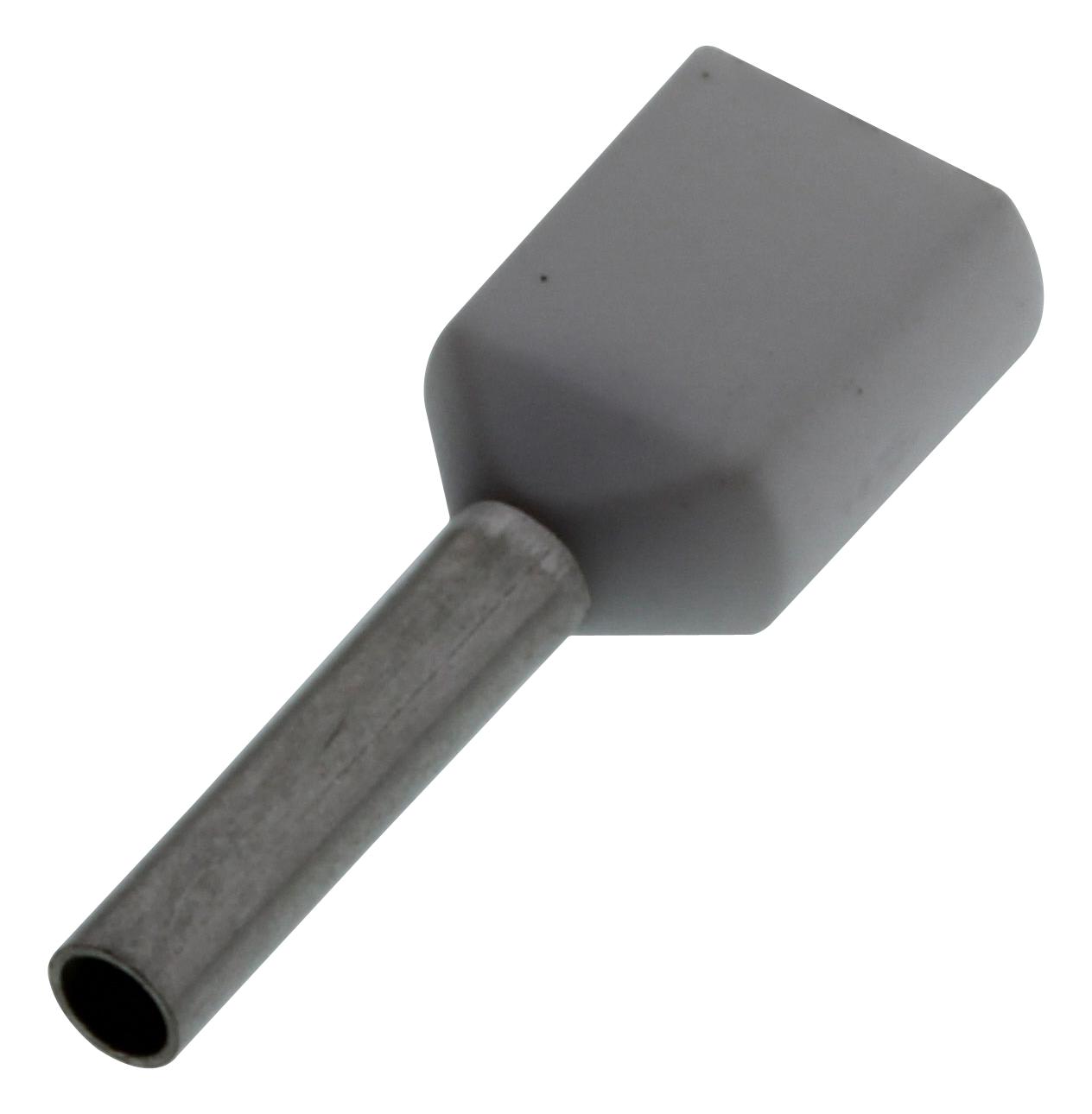

Phoenix Contact AITWIN2X058WH Twin Ferrule Wire Connector
The PHOENIX CONTACT AI-TWIN 2X 0,5 - 8 WH ferrule provides a convenient and efficient method for terminating two conductors with a single ferrule. This design simplifies wiring processes and enables the easy creation of chain bridges in electrical systems. Constructed from CU-DHP with a tin-plated coating, the ferrule ensures reliable electrical connections and resistance to corrosion. Its compatibility with various conductor categories and adherence to CSA standards make it suitable for a wide range of industrial applications, including automation, control systems, and power distribution.
Phoenix Contact AITWIN2X058WH Twin Ferrule Wire Connector Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- GTIN: 4017918094485
- Weight per Piece (excluding packing): 0.118 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 15 mm
- Maximum stripping length: 11 mm
- Sleeve length: 8 mm
- Inner dimension of the insulating collar (d): 2.5 mm
- Ferrule diameter: 1.5 mm
- Insulating collar thickness: 0.25 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Color: white
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: CU-DHP
- Coating: tin-plated (galvanic)
- Conductor category: Stranded conductors, class 2, 5, 6 / B, C, K, M
- Connection in acc. with standard: CSA
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 4.0: 27060700
- eCl@ss 4.1: 27060700
- eCl@ss 5.0: 27400200
- eCl@ss 5.1: 27400200
- eCl@ss 6.0: 27400200
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- eCl@ss 9.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- ETIM 6.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
Buy the AI-TWIN 2X 0 5 - 8 WH PHOENIX CONTACT Twin Ferrule Wire Connector | myMectronic
Purchase the PHOENIX CONTACT AI-TWIN 2X 0,5 - 8 WH ferrule securely online for reliable wire termination and efficient system assembly.
