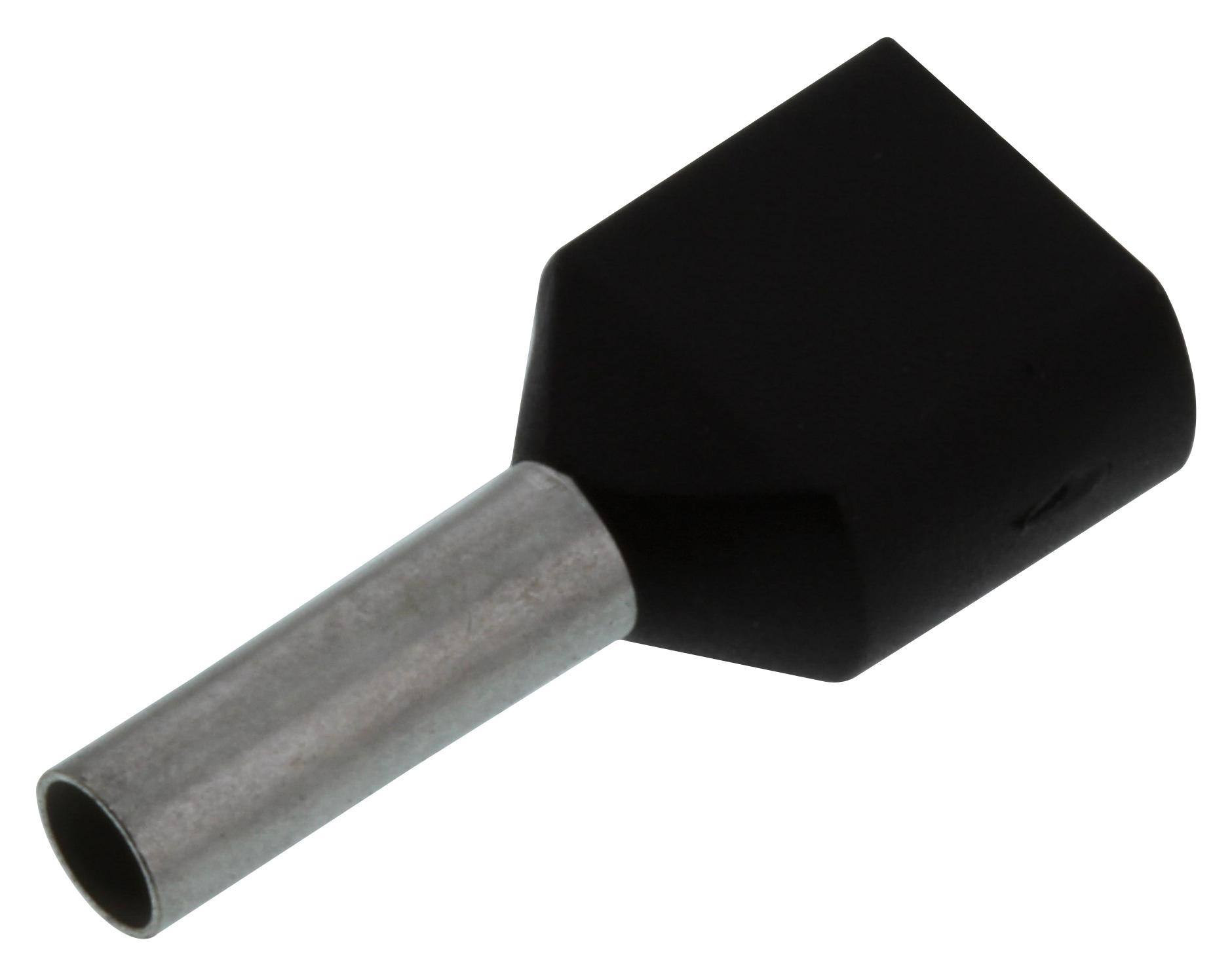

Phoenix Contact AITWIN2X158BK Twin Conductor Ferrules
The PHOENIX CONTACT AI-TWIN 2X 1,5 - 8 BK ferrule offers a convenient and efficient method for terminating two conductors with a single ferrule. This design streamlines the connection process, particularly beneficial for applications requiring chain bridges. Constructed from CU-DHP with a tin-plated coating, these ferrules ensure reliable electrical contact and corrosion resistance. They are halogen-free and silicone-free, meeting stringent environmental standards. Suitable for stranded conductors, these ferrules are ideal for industrial automation, control systems, and power distribution applications where secure and space-saving connections are essential.
Phoenix Contact AITWIN2X158BK Twin Conductor Ferrules Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- GTIN: 4017918094379
- Weight per Piece (excluding packing): 0.186 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 16 mm
- Maximum stripping length: 12 mm
- Sleeve length: 8 mm
- Inner dimension of the insulating collar (d): 3.6 mm
- Ferrule diameter: 2.3 mm
- Insulating collar thickness: 0.3 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Color: black
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: CU-DHP
- Coating: tin-plated (galvanic)
- Conductor category: Stranded conductors, class 2, 5, 6 / B, C, K, M
- Connection in acc. with standard: CSA
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- eCl@ss 5.1: 27400200
- eCl@ss 6.0: 27400200
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- eCl@ss 9.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- ETIM 6.0: EC000005
- ETIM 7.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
Buy the AI-TWIN 2X 1 5 - 8 BK PHOENIX CONTACT Twin Conductor Ferrules | myMectronic
Purchase the PHOENIX CONTACT AI-TWIN 2X 1,5 - 8 BK ferrule securely online and ensure reliable connections for your industrial applications.
