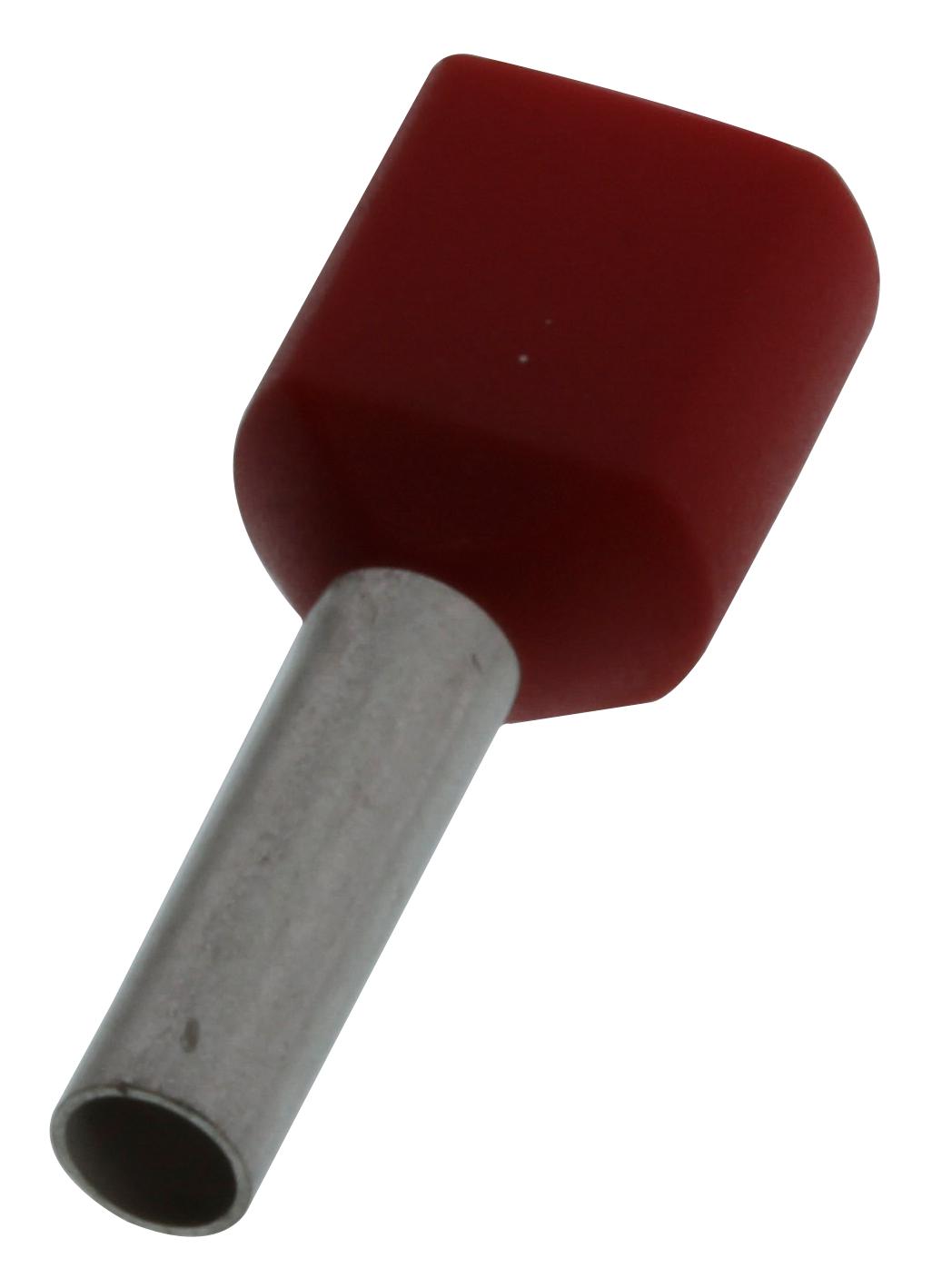

Phoenix Contact AITWIN2X18RD Twin Ferrule for Conductors
The PHOENIX CONTACT AI-TWIN 2X 1 - 8 RD is a specialized wire ferrule designed to efficiently connect two conductors using a single ferrule. This innovative design simplifies the process of setting up chain bridges and provides a secure, reliable connection. Manufactured from E-CU with a tin-plated coating, these ferrules are halogen-free and suitable for a wide range of industrial applications, including those requiring high temperature resistance. They are CSA and EAC approved, ensuring compliance with industry standards. The ferrule's design allows for easy and efficient termination of wires, contributing to streamlined assembly processes and improved overall system performance.
Phoenix Contact AITWIN2X18RD Twin Ferrule for Conductors Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- Weight per Piece (excluding packing): 0.15 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 15 mm
- Maximum stripping length: 12 mm
- Sleeve length: 8 mm
- Inner dimension of the insulating collar (d): 3.4 mm
- Ferrule diameter: 2.05 mm
- Insulating collar thickness: 0.3 mm
- Sleeve wall thickness: 0.15 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Color: red
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: E-CU
- Coating: tin-plated (galvanic)
- Connection in acc. with standard: CSA
- eCl@ss 4.0: 27060701
- eCl@ss 4.1: 27060701
- eCl@ss 5.0: 27400201
- eCl@ss 5.1: 27400201
- eCl@ss 6.0: 27400201
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
Buy the AI-TWIN 2X 1 - 8 RD PHOENIX CONTACT Twin Ferrule for Conductors | myMectronic
Securely purchase the PHOENIX CONTACT AI-TWIN 2X 1 - 8 RD ferrule online for reliable and efficient wire termination.
