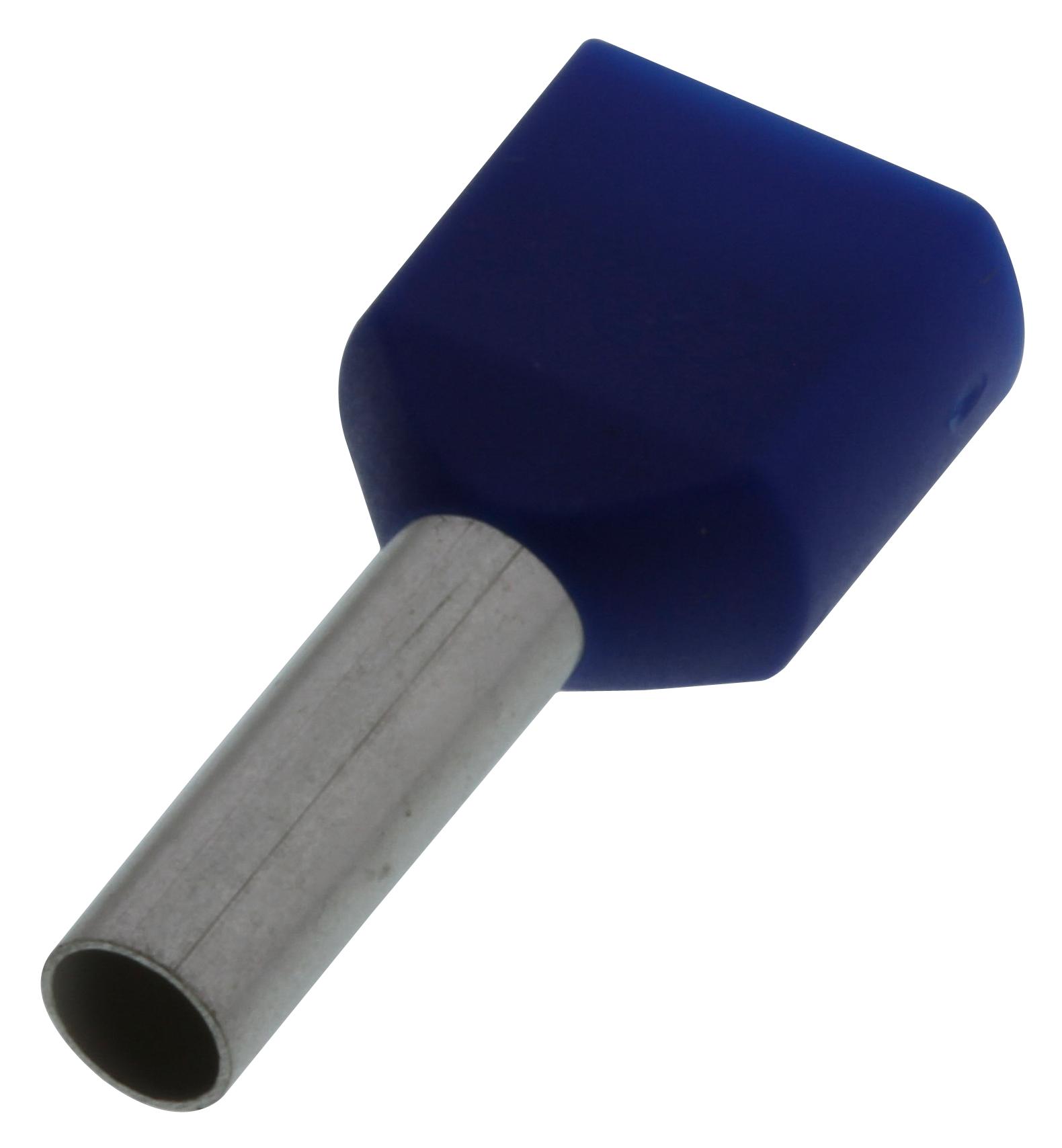

Phoenix Contact AITWIN2X2510BU Twin Ferrule for Conductors
The PHOENIX CONTACT AI-TWIN 2X 2,5 -10 BU is a specialized ferrule designed to efficiently crimp two conductors together. This twin ferrule simplifies wiring processes, particularly in applications requiring chain bridges. Constructed from CU-DHP and galvanically tin-plated, it offers excellent conductivity and corrosion resistance. It is CSA-certified, ensuring compliance with industry standards, and is free from silicone and halogen, contributing to environmentally friendly applications. Suitable for stranded conductors, this ferrule is ideal for various industrial and commercial wiring projects.
Phoenix Contact AITWIN2X2510BU Twin Ferrule for Conductors Specifications:
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- GTIN: 4017918094386
- Weight per Piece (excluding packing): 0.304 g
- Custom tariff number: 85369010
- Country of origin: Germany
- Length (b): 18.5 mm
- Maximum stripping length: 14 mm
- Sleeve length: 10 mm
- Inner dimension of the insulating collar (d): 4.2 mm
- Ferrule diameter: 2.9 mm
- Insulating collar thickness: 0.3 mm
- Sleeve wall thickness: 0.2 mm
- Short-term temperature: 120 °C
- Max. permanent temperature: 105 °C
- Color: blue
- Components: free from silicone and halogen
- Flammability rating according to UL 94: HB
- Material: CU-DHP
- Coating: tin-plated (galvanic)
- Conductor category: Stranded conductors, class 2, 5, 6 / B, C, K, M
- Connection in acc. with standard: CSA
- Environmental Product Compliance: China RoHS: Environmentally friendly use period: unlimited = EFUP-e, No hazardous substances above threshold values
- eCl@ss 4.0: 27060700
- eCl@ss 4.1: 27060700
- eCl@ss 5.0: 27400200
- eCl@ss 5.1: 27400200
- eCl@ss 6.0: 27400200
- eCl@ss 7.0: 27400201
- eCl@ss 8.0: 27400201
- eCl@ss 9.0: 27400201
- ETIM 2.0: EC000005
- ETIM 3.0: EC000005
- ETIM 4.0: EC000005
- ETIM 5.0: EC000005
- ETIM 6.0: EC000005
- ETIM 7.0: EC000005
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 27121703
- UNSPSC 11: 27121703
- UNSPSC 12.01: 27121703
- UNSPSC 13.2: 27121703
