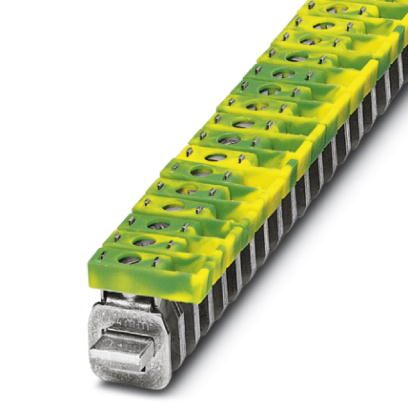

Phoenix Contact AKG4GNYE Connection Terminal Block
The Phoenix Contact AKG 4 GNYE connection terminal block is a versatile component designed for secure and reliable electrical connections. It utilizes a screw connection mechanism, accommodating conductors with a cross-section ranging from 0.5 mm² to 6 mm². The block's green-yellow color provides clear identification and is commonly used in grounding applications. Constructed from PA (polyamide) insulating material, it offers excellent durability and electrical insulation. This terminal block is suitable for a wide range of industrial applications, including power distribution, control systems, and equipment grounding, ensuring safe and efficient electrical connectivity.
Phoenix Contact AKG4GNYE Connection Terminal Block Specifications:
- Color: green-yellow
- Insulating material: PA
- Nominal cross section: 4 mm²
- Flammability rating according to UL 94: V2
- Nominal current IN: 41 A
- Maximum load current: 41 A (with 6 mm² conductor cross section)
- Nominal voltage UN: 300 V
- Length: 23.7 mm
- Width: 7 mm
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 6 mm²
- Conductor cross section flexible min.: 0.5 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 10
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 6 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.5 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 6 mm²
- 2 conductors with same cross section, solid min.: 0.5 mm²
- 2 conductors with same cross section, solid max.: 2.5 mm²
- 2 conductors with same cross section, stranded min.: 0.5 mm²
- 2 conductors with same cross section, stranded max.: 2.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 2.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 2.5 mm²
- Connection method: Screw connection
- Stripping length: 16 mm
- Screw thread: M4
- Tightening torque, min: 1.5 Nm
- Tightening torque max: 1.8 Nm
- Connection in acc. with standard: CUL
- Packing unit: 1 pc
- Minimum order quantity: 50 pc
- Custom tariff number: 85369010
- Country of origin: Germany
- eCl@ss 4.0: 27141131
- eCl@ss 4.1: 27141131
- eCl@ss 5.0: 27141131
- eCl@ss 5.1: 27141131
- eCl@ss 6.0: 27141120
- eCl@ss 7.0: 27141120
- eCl@ss 8.0: 27141146
- eCl@ss 9.0: 27141120
- ETIM 2.0: EC000897
- ETIM 3.0: EC000897
- ETIM 4.0: EC000897
- ETIM 5.0: EC000001
- UNSPSC 6.01: 30211811
- UNSPSC 7.0901: 39121410
- UNSPSC 11: 39121410
- UNSPSC 12.01: 39121410
- UNSPSC 13.2: 39121410
Buy the AKG 4 GNYE PHOENIX CONTACT Connection Terminal Block | myMectronic
Purchase the PHOENIX CONTACT AKG 4 GNYE connection terminal block securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact AKG4GNYE?
You can click on the BUY or RFQ button to purchase AKG4GNYE from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part AKG4GNYE?
You can download the AKG4GNYE datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of AKG4GNYE?
Phoenix Contact
