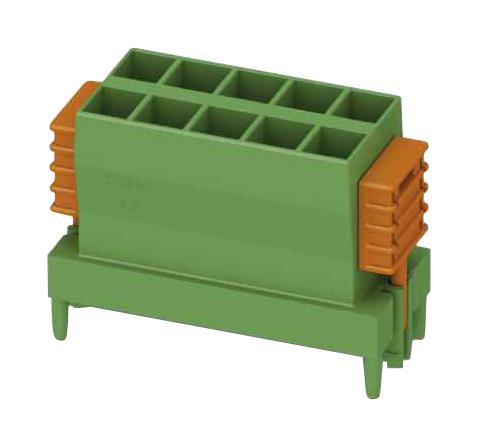

Phoenix Contact CDDC255PV50 PCB connector
The CDDC 2.5/5-PV-5.0 direct connector by Phoenix Contact is a compact, PCB-mounted system featuring SKEDD direct plug-in technology. Designed for high-density applications, it supports a nominal current of 12 A and a rated voltage of 320 V. The connector has five positions with linear pin layout, utilizing crimp connection for reliable contact. Its green housing is made of flame-retardant PA, rated UL 94 V-0, and includes self-locking flange for secure mounting. Suitable for automation and electronic projects requiring vibration resistance and flexible PCB positioning.
Phoenix Contact CDDC255PV50 PCB connector Specifications:
- Nominal current: 12 A
- Rated voltage: 320 V (III/2)
- Number of positions: 5
- Pitch: 5 mm
- Connection method: Crimp connection
- Housing color: Green
- Housing material: PA, UL 94 V-0
- Locking: Self-locking flange
- Insulation material: PA
- Ambient temperature (operation): -55°C to +105°C
- Climatic tests: Cold stress -55°C/2h, Thermal stress 105°C/168h
- Electrical tests: Insertion strength approx. 4N, Withdraw approx. 3N
- Environmental resistance: IP20, glow wire index GWFI 850°C
- Connection capacity: 0.14 mm²...2.5 mm², AWG 26...14
- Compliance: IEC 61984, UL recognized
Buy the Phoenix Contact Series CDDC PCB Connectors: CDDC255PV50
Order the Phoenix Contact CDDC255PV50 PCB connector online today and enhance your electronic assembly with a high-quality, space-saving, and vibration-resistant solution. Featuring SKEDD direct plug-in technology, it offers quick, vibration-proof connection in a compact design for versatile PCB mounting. Ideal for automation, control panels, and electronic projects requiring reliable and efficient connections. The connector’s robust green housing, rated UL 94 V-0, ensures safety and durability in demanding environments, making it an essential component for modern electronic systems.
Buy Phoenix Contact CDDC255PV50 now and experience unmatched reliability and performance with high-density, vibration-resistant PCB connections.
Frequently Asked Questions
Where can I buy Phoenix Contact CDDC255PV50?
You can click on the BUY or RFQ button to purchase CDDC255PV50 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part CDDC255PV50?
You can download the CDDC255PV50 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of CDDC255PV50?
Phoenix Contact
