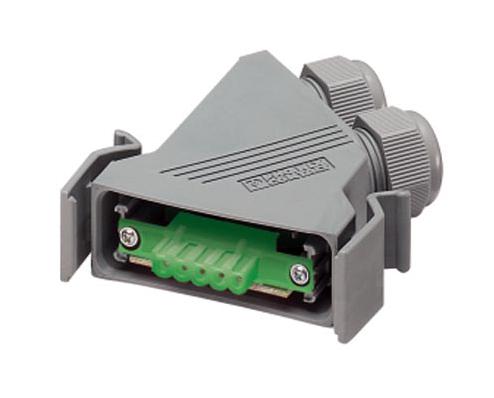

Phoenix Contact VS25DEVNET D-Sub Connector
The D-SUB connector for DeviceNet is a robust, unshielded, straight connection component with a shell size 3, IP67 protection, and screw connection. Made in Germany, it features a gold-plated contact surface, Cu alloy contact material, and PA housing suitable for industrial environments. Capable of operating at temperatures from -40°C to 80°C, rated for 8A and 250V, it complies with UL 94V-0 flammability standards and multiple certifications. Designed for reliable field applications, it ensures secure electrical contact and environmental protection in demanding settings.
Phoenix Contact VS25DEVNET D-Sub Connector Specifications:
- Connection method: Screw connection
- Degree of pollution: 3
- Housing material: PA
- Contact surface material: gold-plated
- Contact material: Cu alloy
- Rated current: 8A
- Rated voltage: 250V
- Overvoltage category: mM
- Standard compliance: UL 94V-0
- Temperature range: -40°C to 80°C
- Protection level: IP67
- Number of positions: 5
- Cable outlet: Angled
- Material: PA housing
- Weight: 107.29 g
- Environmental compliance: RoHS
- Certifications: EAC, UL
Buy the Phoenix Contact VS25DEVNET – Reliable D-SUB Connector for Industrial Applications
Order the D-Sub connector for DeviceNet online today and ensure secure, reliable connections in your industrial applications. Designed for durability with IP67 rating, gold-plated contacts, and a rugged PA housing, it provides optimal performance under harsh environmental conditions. Easy to install with screw terminal connections and suitable for outdoor or indoor use, this connector offers high current capacity and compliance with industry standards. Purchase now from our website for fast delivery and expert support, ensuring your automation and control projects stay on track.
Buy Phoenix Contact VS25DEVNET now and experience unmatched reliability and performance in industrial connectors.
Frequently Asked Questions
Where can I buy Phoenix Contact VS25DEVNET?
You can click on the BUY or RFQ button to purchase VS25DEVNET from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part VS25DEVNET?
You can download the VS25DEVNET datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of VS25DEVNET?
Phoenix Contact
