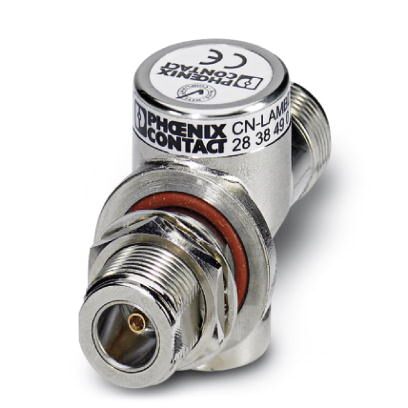

Phoenix Contact CNLAMBDA459BB Lambda 4 Coaxial Surge Protector
The PHOENIX CONTACT CN-LAMBDA/4-5.9-BB is a surge protection device designed for coaxial signal interfaces. It incorporates Lambda/4 technology to provide robust protection in a compact form factor. This device is ideal for outdoor installations and serves as an effective adapter between devices and cables, safeguarding sensitive equipment from voltage surges. It features a brass housing with nickel plating, ensuring durability and corrosion resistance. The CN-LAMBDA/4-5.9-BB is suitable for a wide range of applications requiring high HF power and reliable surge protection.
Phoenix Contact CNLAMBDA459BB Lambda 4 Coaxial Surge Protector Specifications:
- Height: 38 mm
- Width: 26.1 mm
- Depth: 60 mm
- Ambient temperature (operation): -40 °C ... 90 °C
- Degree of protection: IP68
- Housing material: Brass (CuZn)
- Color: nickel
- Mounting type: Connection-specific intermediate plugging
- Type: Attachment plug
- Number of positions: 1
- Direction of action: Line-Shield/Earth Ground
- IEC test classification: C2, C3, D1
- VDE requirement class: C2, C3, D1
- Nominal current IN: 5 A (25 °C)
- Nominal discharge current In(8/20) µs (Core-Earth): 50 kA
- Nominal discharge current In(8/20) µs (Core-Shield): 50 kA
- Total surge current (8/20) µs: 60 kA
- Total surge current (10/350) µs: 20 kA
- Max. discharge current Imax(8/20) µs maximum (Core-Earth): 60 kA
- Max. discharge current Imax(8/20) µs maximum (Core-Shield): 60 kA
- Impulse discharge current (10/350) µs, peak value limp: ≤ 20 kA
- Output voltage limitation at 1 kV/µs (Core-Earth) spike: ≤ 11 V (6 kV/3 kA)
- Output voltage limitation at 1 kV/µs (Core-Shield) spike: ≤ 11 V (6 kV/3 kA)
- Output voltage limitation at 1 kV/µs (Core-Earth) static: ≤ 11 V (6 kV/3 kA)
- Output voltage limitation at 1 kV/µs (Core-Shield) static: ≤ 11 V (6 kV/3 kA)
- Voltage protection level Up(core-ground): ≤ 11 V (6 kV/3 kA)
- Voltage protection level Up(core-shield): ≤ 11 V (6 kV/3 kA)
- Input attenuation aE, asym.: typ. 0.05 dB (≤ 0.15 dB)
- Frequency range: 2.4 GHz ... 5.9 GHz
- Standing wave ratio SWR in a 50 Ω system: typ. 1.1 (≤ 1.20 (2.4 GHz...5.9 GHz))
- Permissible HF power Pmaxat VSWR = xx (50 ohm system): ≤ 500 W
- Peak HF power: ≤ 4 kW
- Impulse durability (conductor-ground): C2 - 10 kV/5 kA, D1 - 2,5 kA
- Impulse durability (conductor-shield): C2 - 10 kV/5 kA, D1 - 2.5 kA
- Connection method IN: N Connector, female
- Connection method OUT: N Connector, female
- Standards and Regulations: IEC 61643-21
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 140.19 g
- Custom tariff number: 85363010
- Country of origin: United States
- eCl@ss 4.0: 27140201
- eCl@ss 4.1: 27130801
- eCl@ss 5.0: 27130801
- eCl@ss 5.1: 27130801
- eCl@ss 6.0: 27130807
- eCl@ss 7.0: 27130807
- eCl@ss 8.0: 27130807
- eCl@ss 9.0: 27130807
- ETIM 2.0: EC000943
- ETIM 3.0: EC000943
- ETIM 4.0: EC000943
- ETIM 5.0: EC000943
- UNSPSC 6.01: 30212010
- UNSPSC 7.0901: 39121610
- UNSPSC 11: 39121610
- UNSPSC 12.01: 39121610
- UNSPSC 13.2: 39121620
