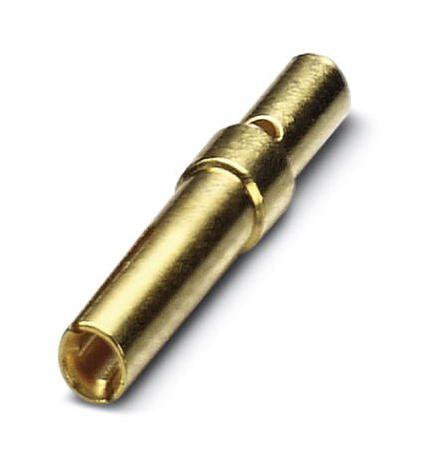

Phoenix Contact CUCDSCJ1BAUSDSC28 D-SUB Crimp Contact
The PHOENIX CONTACT CUC-DSC-J1BAU-S/DSC28 D-SUB crimp contact is a standard contact specifically engineered for D-SUB contact inserts. It provides a secure crimp connection, ensuring reliable signal transmission in a variety of industrial applications. Constructed from a copper alloy with a gold over nickel surface finish, this contact offers excellent conductivity and corrosion resistance. It is designed for use with wire gauges ranging from AWG 28 to 26, making it versatile for different wiring configurations. The contact's robust design and high-grade materials contribute to its durability and long-term performance in demanding environments.
Phoenix Contact CUCDSCJ1BAUSDSC28 D-SUB Crimp Contact Specifications:
- Connection method: Crimp connection
- AWG solid min: 28
- AWG solid max: 26
- Conductor cross section: 0.08 mm² ... 0.12 mm²
- Weight: 0.237 g
- Ambient temperature (operation): -55 °C ... 130 °C
- Contact surface material: 0.2 µm, gold over nickel
- Contact material: Copper alloy
- Width: 1.74 mm
- Height: 1.74 mm
- Length: 13.6 mm
- Rated current: 5 A (at 20 °C)
- Standards and Regulations: DIN 41652
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally friendly use period: unlimited = EFUP-e
- Packing unit: 1 pc
- Minimum order quantity: 100 pc
- Custom tariff number: 85366990
- Country of origin: Switzerland
