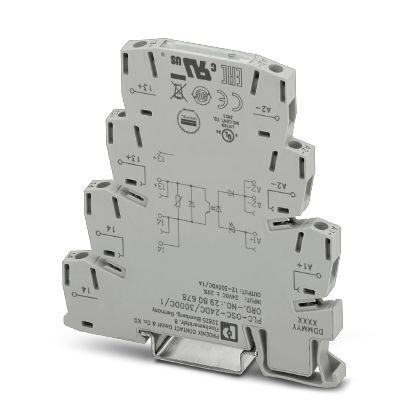

Phoenix Contact PLCOSC24DC300DC1 Solid-State Relay Module
The PHOENIX CONTACT PLC-OSC- 24DC/300DC/ 1 solid-state relay module provides a reliable and efficient solution for controlling DC loads in industrial environments. Its solid-state design ensures wear-free switching and resistance to vibrations and shocks, making it suitable for demanding applications. The module features an input voltage of 24 V DC and an output voltage range of 12-300 V DC with a limiting continuous current of 1 A. It incorporates protective circuits like polarity protection diodes and varistors for enhanced safety and reliability. The module is designed for DIN rail mounting and can be bridged with adjacent modules for flexible system configurations. It is suitable for applications requiring precise control and high reliability, such as automated machinery, process control systems, and renewable energy systems.
Phoenix Contact PLCOSC24DC300DC1 Solid-State Relay Module Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 36.07 g
- Custom tariff number: 85364900
- Country of origin: Germany
- Width: 6.2 mm
- Height: 80 mm
- Depth: 86 mm
- Ambient temperature (operation): -25 °C ... 60 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Switching threshold "0" signal in reference to UN: ≤ 0.4
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 8 mA
- Typical response time: 0.3 ms
- Typical turn-off time: 0.7 ms
- Operating voltage display: Yellow LED
- Type of protection (input): Protection against polarity reversal
- Surge protection (input): Yes
- Protective circuit/component (input): Polarity protection diode
- Varistor (input): Yes
- Transmission frequency: 50 Hz
- Power dissipation for nominal condition: 0.5 W
- Output voltage range: 12 V DC ... 300 V DC
- Limiting continuous current: 1 A
- Voltage drop at max. limiting continuous current: < 500 mV
- Type of protection (output): Protection against polarity reversal
- Surge protection (output): Yes
- Protective circuit/component (output): Polarity protection diode
- Varistor (output): Yes
- Conductor cross section solid (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (input): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 26 ... 14
- Conductor cross section solid (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section flexible (output): 0.14 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 26 ... 14
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Flammability rating according to UL 94: V0
- IEC 60664: Compliant
- EN 50178: Compliant
- IEC 62103: Compliant
- Rated surge voltage/insulation: 4 kV / basic insulation
- Rated insulation voltage: 300 V
- Degree of pollution: 2
- Overvoltage category: III
- Connection in acc. with standard: CUL
