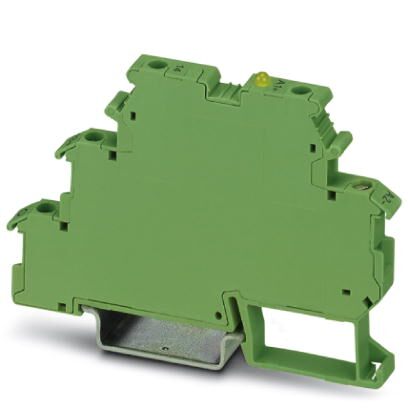

Phoenix Contact DEKOV24DC24DC3AKT Solid-State Relay Terminal Block
The PHOENIX CONTACT DEK-OV- 24DC/ 24DC/ 3/AKT is a power solid-state relay terminal block ideal for actuator applications. It offers wear-free switching of DC and AC voltages, integrated input and output protective circuits, and a status indicator. The block's modular design allows for easy labeling and mounting, and it provides electrical isolation between input and output. It is suitable for applications requiring reliable and efficient switching in industrial environments.
Phoenix Contact DEKOV24DC24DC3AKT Solid-State Relay Terminal Block Specifications:
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Note: Use of EB 80-DIK... bridges may cause minor expansion of the DEK housing; disconnect bridges after 10-12 blocks.
- Width: 6.2 mm
- Height: 80 mm
- Depth: 56 mm
- Ambient temperature (operation): -20 °C ... 60 °C
- Ambient temperature (storage/transport): -20 °C ... 70 °C
- Nominal input voltage UN: 24 V DC
- Input voltage range in reference to UN: 0.8 ... 1.2
- Input voltage range: 19.2 V DC ... 28.8 V DC
- Switching threshold "0" signal in reference to UN: ≤ 0.4
- Switching threshold "1" signal in reference to UN: ≥ 0.8
- Typical input current at UN: 7 mA
- Typical response time: 40 µs
- Typical turn-off time: 200 µs
- Operating voltage display: Yellow LED
- Type of protection (input): Reverse polarity protection
- Transmission frequency: 300 Hz
- Power dissipation for nominal condition: 0.17 W
- Output voltage range: 3 V DC ... 30 V DC
- Limiting continuous current: 3 A
- Voltage drop at max. limiting continuous current: ≤ 0.2 V
- Output circuit: 2-wire, floating
- Type of protection (output): Reverse polarity protection
- Surge protection: Yes
- Test voltage input/output: 2.5 kV AC
- Mounting position: any
- Assembly instructions: In rows with zero spacing
- Operating mode: 100% operating factor
- Connection name (input): Input side
- Connection method (input): Screw connection
- Stripping length (input): 8 mm
- Screw thread (input): M3
- Conductor cross section solid (input): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (input): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (input): 24 ... 12
- Torque (input): 0.5 Nm
- Connection name (output): Output side
- Connection method (output): Screw connection
- Stripping length (output): 8 mm
- Screw thread (output): M3
- Conductor cross section solid (output): 0.2 mm² ... 4 mm²
- Conductor cross section flexible (output): 0.2 mm² ... 2.5 mm²
- Conductor cross section AWG (output): 24 ... 12
- Torque (output): 0.5 Nm
- Standards and Regulations (Standards/regulations): IEC 60664, EN 50178
- Insulation: Basic insulation
- Pollution degree: 2
- Overvoltage category: III
- China RoHS: Environmentally Friendly Use Period = 50
