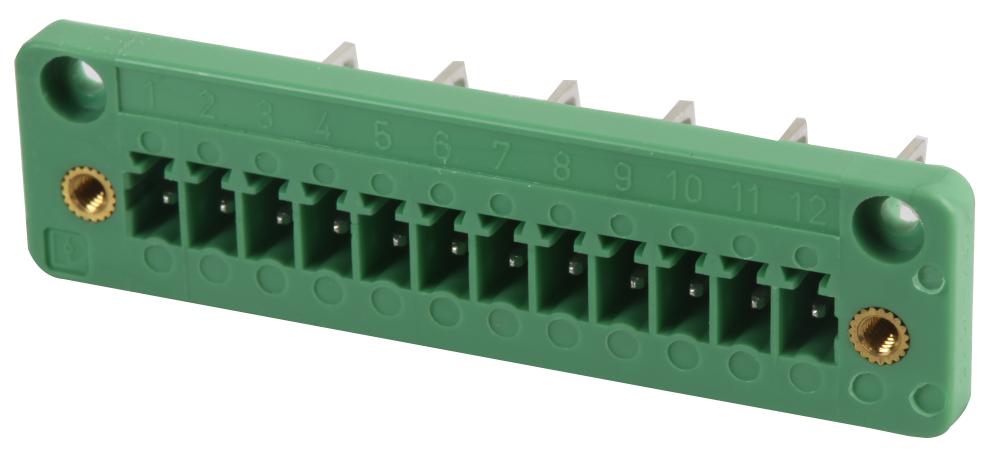

Phoenix Contact DFKMC1512GF381 Industrial Base Strip
The base strip DFK-MC 1,5/12-GF-3,81 is a versatile connector suitable for industrial applications, offering flexibility with solder and slip-on connection methods. Designed for easy mounting and reliable contact, it supports a nominal current of 8 A and a rated voltage of 160 V. The connector features a pitch of 3.81 mm, with dimensions of 16.2 mm length, 20.4 mm height, and 60.11 mm width. Constructed from PA with tin contact surface, it is compliant with UL 94 VO flammability and EN-VDE standards, making it ideal for automation and control systems.
Phoenix Contact DFKMC1512GF381 Industrial Base Strip Specifications:
- Number of positions: 12
- Connection method: Solder/Slip-on connection
- Rated current: 8 A
- Rated voltage: 160 V (III/2)
- Insulating material: PA
- Flammability rating: UL 94 VO
- Conductor cross section: 0.14 mm² to 1.5 mm²
- Conductor AWG: 28 to 16
- Dimensions: Length 16.2 mm, Height 20.4 mm, Width 60.11 mm, Pitch 3.81 mm
- Contact surface: Tin
- Standard compliance: EN-VDE, UL
- Temperature range: Suitable for industrial temperature conditions
- Weight per piece: 7.6 g
Buy the Phoenix Contact DFK-MC 1,5/12-GF-3,81 – Reliable Industrial Base Strip for Automation
Secure your automation projects with the Phoenix Contact DFK-MC 1,5/12-GF-3,81 base strip. Featuring 12 positions, a rated current of 8 A, and a rated voltage of 160 V, it offers flexible solder and slip-on connections. Its dimensions of 16.2 mm length, 20.4 mm height, and 60.11 mm width ensure compatibility with various control panels. Made from durable PA with a tin contact surface, this high-quality connector complies with UL and EN-VDE standards. Purchase online today for reliable electrical connections in your industrial applications.
Buy Phoenix Contact DFK-MC 1,5/12-GF-3,81 now and experience unmatched reliability and performance in automation and control systems.
