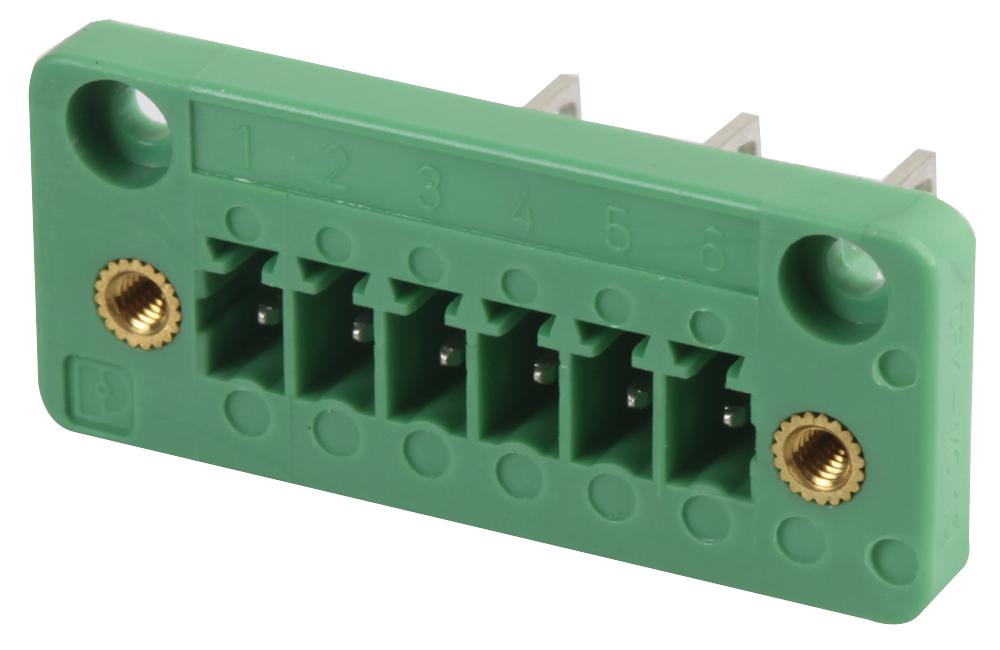

Phoenix Contact DFKMC156GF381 Terminal Strip
The DFK-MC 1,5/6-GF-3,81 is a versatile base strip designed for reliable electrical connections with six positions and a pitch of 3.81 mm. It features solder or slip-on connection methods, a rated voltage of 160 V, and an 8 A current capacity, suitable for industrial automation and control panels. Made from durable PA insulation material with a UL 94V-0 flammability rating, this green terminal strip ensures secure contact with tin-plated surfaces. It supports flexible mounting options with direct connection capabilities, ideal for compact wiring systems in various electrical applications.
Phoenix Contact DFKMC156GF381 Terminal Strip Specifications:
- Number of positions: 6
- Pitch: 3.81 mm
- Rated voltage: 160 V (III/2), 320 V (II/2), 150 V (U/N)
- Nominal current: 8 A
- Connection method: Solder/Slip-on connection
- Contact surface: Tin
- Insulating material: PA (Polyamide)
- Flammability rating: UL 94V-0
- Dimensions: Length 16.2 mm, Height 20.4 mm, Width 37.25 mm, Dimension b 6.19 mm + (number of positions × 3.81 mm), Dimension c: b + 4.7 mm
- Conductor cross section: solid/min 0.14 mm², max 1.5 mm²; flexible min 0.14 mm², max 1.5 mm²
- Conductor AWG: min 28, max 16
- Standards: EN-VDE, CSA, UL recognized
- Environmental: RoHS compliant, environmentally friendly use period of 50 years
- Approvals: VDE, CSA, cULus, EAC
Buy the Buy Phoenix Contact DFK-MC 1,5/6-GF-3,81 Part Number DFKMC156GF381 Online
Order the Phoenix Contact DFK-MC 1,5/6-GF-3,81 terminal strip online today and ensure reliable, high-quality electrical connections for industrial control panels. This six-position terminal strip features a compact 3.81 mm pitch, rated for 160 V and 8 A, supporting both solder and slip-on connection methods for maximum flexibility. Made from durable PA with UL 94V-0 flammability rating, it offers secure, tin-plated contact surfaces. Easily mounted directly, it’s ideal for tight spaces and versatile wiring in control cabinets and automation systems.
Get Phoenix Contact DFK-MC 1,5/6-GF-3,81 today—built for reliable connections, versatile solder or slip-on mounting, ideal for industrial automation.
