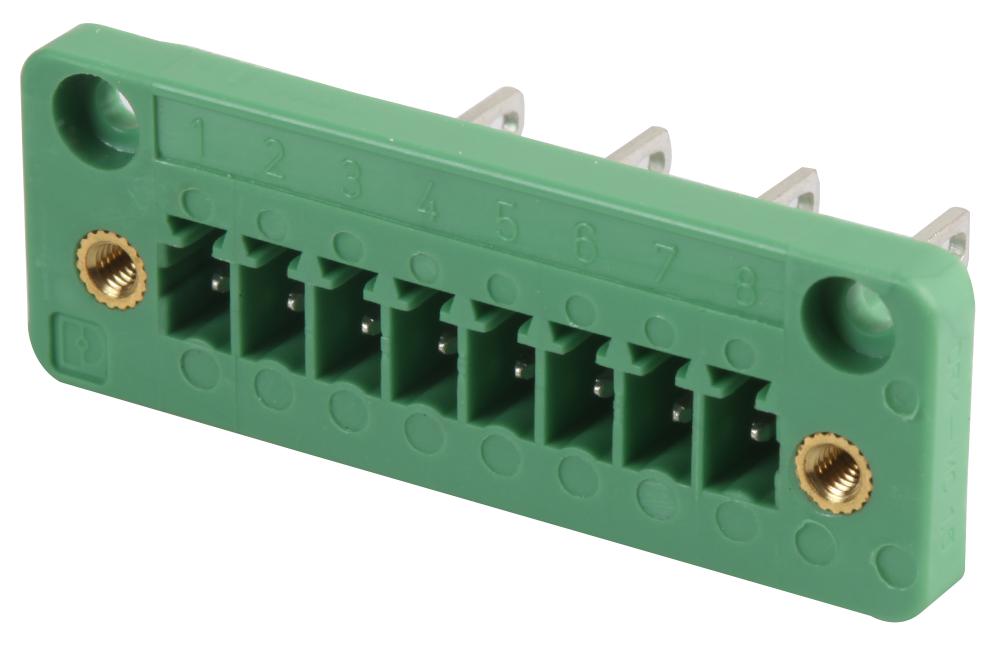

Phoenix Contact DFKMC158GF381 Base strip
The DFK-MC 1,5/8-GF-3,81 is a versatile base strip designed for secure and flexible LED and automation wiring connections. It features a solder/slip-on connection method, with a nominal current of 8A and a rated voltage of 160V in accordance with EN-VDE standards. The green insulating material, tin contact surface, and compact dimensions (length 16.2mm, height 20.4mm, width 44.87mm, pitch 3.81mm) make it ideal for panel wiring, ensuring reliable electrical contact and easy installation within control panels and automation systems.
Phoenix Contact DFKMC158GF381 Base strip Specifications:
- Number of positions: 8
- Connection method: Solder/Slip-on connection
- Rated current: 8A
- Rated voltage: 160V (III/2)
- Insulating material: PA
- Contact surface: Tin
- Dimensions: Length 16.2mm, Height 20.4mm, Width 44.87mm
- Pitch: 3.81mm
- Maximum load current: 8A
- Conductor cross section solid: 0.14 mm² to 1.5 mm²
- Conductor cross section flexible: 0.14 mm² to 1.5 mm²
- Certifications: EN-VDE, UL 94 flammability rating
- Environmental compliance: China RoHS
- Standard: EN-VDE
Buy the Buy Phoenix Contact DFK-MC 1,5/8-GF-3,81 Part Number DFKMC158GF381 Online
Secure your control panel wiring with the Phoenix Contact DFK-MC 1,5/8-GF-3,81 base strip. Featuring solder and slip-on connection options, this versatile component supports 8A current and 160V rated voltage, offering efficient and reliable electrical contacts. Its compact design with dimensions of 16.2mm length and 44.87mm width makes it ideal for automation systems. Upgrade your wiring setup with a trusted, UL-rated, and VDE-approved connector—order online now for fast, dependable delivery and optimal performance in your projects.
Order your Phoenix Contact DFK-MC 1,5/8-GF-3,81 base strip today and ensure reliable wiring connections for your automation and control projects.
Frequently Asked Questions
Where can I buy Phoenix Contact DFKMC158GF381?
You can click on the BUY or RFQ button to purchase DFKMC158GF381 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DFKMC158GF381?
You can download the DFKMC158GF381 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DFKMC158GF381?
Phoenix Contact
