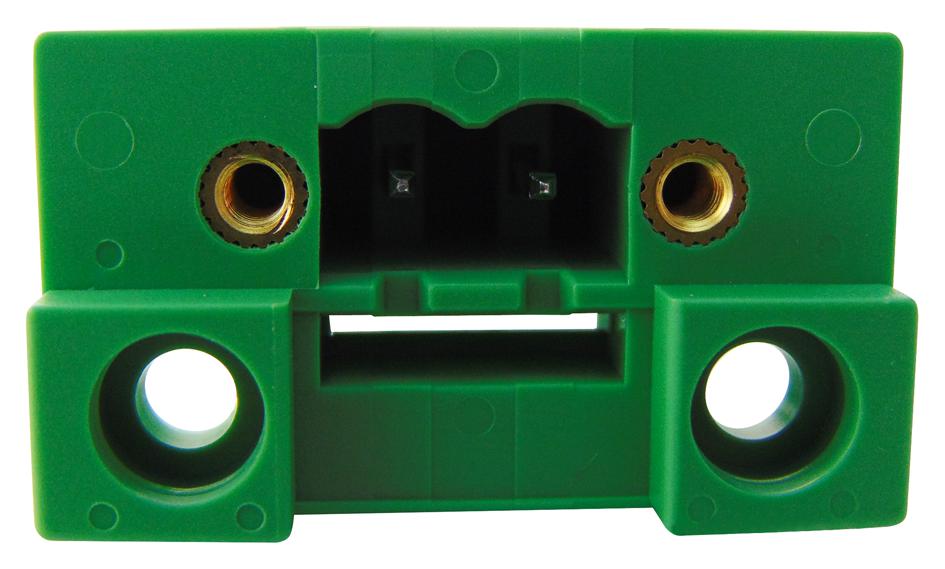

Phoenix Contact DFKMSTB252GF508 2-Position Connector Strip
The DFK-MSTB 2,5/ 2-GF-5,08 base strip by Phoenix Contact is a versatile connector component designed for flexible device wiring. It features a pitch of 5.08 mm, supporting solder and slip-on connection methods, with a rated current of 12 A and a rated voltage of 320 V. Made with durable PA insulation, it is suitable for panel feed-through applications and direct mounting, offering a compact design with dimensions of 17.5 mm in length, 29.5 mm in height, and 30.48 mm in width. Certified for safety standards including UL, VDE, and CSA, it supports reliable electrical connections in automation systems.
Phoenix Contact DFKMSTB252GF508 2-Position Connector Strip Specifications:
- Pitch: 5.08 mm
- Number of positions: 2
- Rated current: 12 A
- Rated voltage: 320 V (III/2), 630 V (Il/2)
- Connection method: Solder/Slip-on
- Insulation material: Polyamide (PA)
- Dimensions: Length 17.5 mm, Height 29.5 mm, Width 30.48 mm
- Flammability rating: UL 94 V-2
- Conductor cross section: 0.2 mm² min, 2.5 mm² max
- Connection in accordance with EN-VDE, CSA
- Contact surface: Tin
- Temperature rating: -55°C to +105°C
- Certifications: UL Listed, VDE, CSA, EAC, IECEE CB Scheme
- Environmentally Friendly Use Period: 50
Buy the Phoenix Contact Series DFK Series Contact: DFKMSTB252GF508
Order the Phoenix Contact DFK series 2-position connector strip online today and ensure high-quality, reliable electrical connections with easy solder and slip-on options. Designed for flexibility, it supports various connection methods suitable for automation systems, panel feed-throughs, and direct mounting applications. Made with durable PA insulation and certified to UL, VDE, and CSA standards, this connector offers a compact footprint of 17.5 mm length, 29.5 mm height, and 30.48 mm width, ensuring efficient use in your wiring projects.
Buy Phoenix Contact DFKMSTB252GF508 now and experience unmatched reliability and performance for your automation and wiring needs.
Frequently Asked Questions
Where can I buy Phoenix Contact DFKMSTB252GF508?
You can click on the BUY or RFQ button to purchase DFKMSTB252GF508 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DFKMSTB252GF508?
You can download the DFKMSTB252GF508 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DFKMSTB252GF508?
Phoenix Contact
