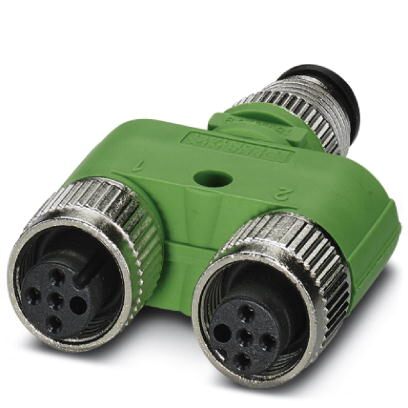

Phoenix Contact SAC3PM12Y2XM12FSBPE 4-Position M12 Y Distributor
The PHOENIX CONTACT SAC-3P-M12Y/2XM12FS B PE is a robust M12 Y distributor engineered for demanding industrial environments. This distributor provides a convenient solution for splitting power or signal connections, featuring a 4-position design with A-coding for compatibility with standard M12 connectors. The bridged pins on two of the sockets offer flexibility in circuit configuration. Constructed with durable materials like TPU, CuZn, and zinc die-cast, this distributor ensures reliable performance and longevity in applications such as industrial automation, power transmission, and sensor networks. Its IP65/IP67 degree of protection safeguards against dust and moisture, making it suitable for harsh conditions.
Phoenix Contact SAC3PM12Y2XM12FSBPE 4-Position M12 Y Distributor Specifications:
- Center distance: 18 mm
- Ambient temperature (operation): -25 °C ... 90 °C
- Degree of protection: IP65, IP67
- Rated current at 40°C: 4 A
- Rated voltage: 60 V
- Number of positions: 4
- Insulation resistance: ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101
- Overvoltage category: II
- Degree of pollution: 3
- Insertion/withdrawal cycles: ≥ 100
- Torque: 0.4 Nm (M12 connector)
- Flammability rating according to UL 94: HB
- Contact material: CuZn
- Contact surface material: Ni/Au
- Contact carrier material: TPU GF
- Material of grip body: TPU, hardly inflammable, self-extinguishing
- Material, knurls: Zinc die-cast, nickel-plated
- Sealing material: NBR
- Packing unit: 1 pc
- Minimum order quantity: 5 pc
- Custom tariff number: 85366990
- Country of origin: Poland
Buy the SAC-3P-M12Y/2XM12FS B PE PHOENIX CONTACT 4-Position M12 Y Distributor | myMectronic
Purchase the PHOENIX CONTACT SAC-3P-M12Y/2XM12FS B PE M12 Y distributor securely and efficiently to ensure reliable connectivity in your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact SAC3PM12Y2XM12FSBPE?
You can click on the BUY or RFQ button to purchase SAC3PM12Y2XM12FSBPE from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part SAC3PM12Y2XM12FSBPE?
You can download the SAC3PM12Y2XM12FSBPE datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of SAC3PM12Y2XM12FSBPE?
Phoenix Contact
