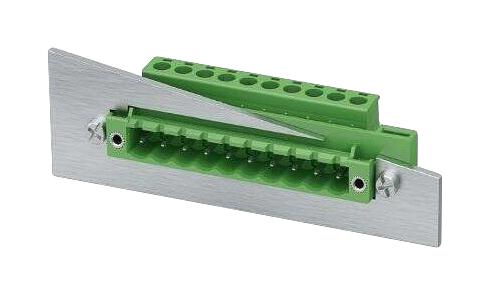

Phoenix Contact DFKMSTB259STF508LR Feed-through connector
The feed-through connector DFK-MSTB 2,5/9-STF-5,08-LR is a versatile, high-quality male contact solution designed for efficient cable management and signal transfer. This connector features a 5.08 mm pitch, 9 positions, and a screw connection with tension sleeve, ensuring secure and reliable connections. Made with tin-plated Cu alloy contacts and a green PA housing, it is RoHS compliant and suitable for industrial automation, control panels, and electronic applications. Its easy-to-install design supports a variety of wire sizes, providing flexibility for diverse wiring configurations.
Phoenix Contact DFKMSTB259STF508LR Feed-through connector Specifications:
- Number of positions: 9
- Pitch: 5.08 mm
- Connection method: Screw connection with tension sleeve
- Contact material: Copper alloy, Tin-plated
- Housing color: Green (6021)
- Housing material: PA
- Rated current: 12 A
- Rated voltage: 320 V (III/2)
- Rated surge voltage: 4.8 kV
- Wire range: 0.2 mm² to 2.5 mm² (solid and flexible)
- Stripping length: 7 mm
- Ambient temperature (operation): -40°C to +100°C
- Flammability rating: UL 94V-0
- Dimensions: Length 19.3 mm, Width 70.69 mm, Height 16.5 mm
- Certification: RoHS compliant, IEC 61892
- Weight per piece: 17.7 g
Buy the Phoenix Contact Series Classic COMBICON Feed-through Connector: DFK-MSTB 2,5/ 9-STF-5,08-LR
Purchase the Phoenix Contact DFK-MSTB 2,5/ 9-STF-5,08-LR today to ensure secure, reliable signal transfer in your electronic and automation systems. This high-quality connector features 9 positions with a 5.08 mm pitch, screw connection, and tin-plated copper contacts housed in a durable green PA casing. Its versatile design accommodates various wire sizes up to 2.5 mm², offering easy installation and maintenance for control panels, machinery, and electronic assemblies. Enhance your wiring solutions with this RoHS-compliant, UL-rated connector for long-lasting, dependable performance.
Get Phoenix Contact DFK-MSTB 2,5/ 9-STF-5,08-LR today—built for reliable connections in industrial automation and control panels.
Frequently Asked Questions
Where can I buy Phoenix Contact DFKMSTB259STF508LR?
You can click on the BUY or RFQ button to purchase DFKMSTB259STF508LR from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part DFKMSTB259STF508LR?
You can download the DFKMSTB259STF508LR datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of DFKMSTB259STF508LR?
Phoenix Contact
