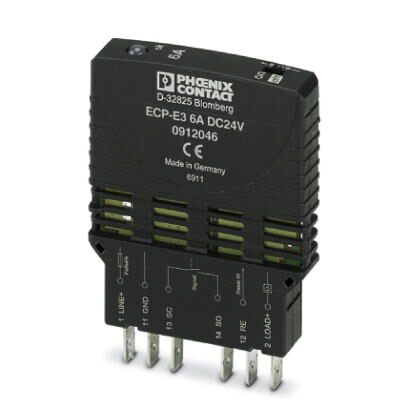

Phoenix Contact ECPE36A Electronic Circuit Breaker
The Phoenix Contact ECP-E3 6A is an electronic circuit breaker designed for reliable protection in various industrial applications. It provides error-free short-circuit detection, even across long cable paths, thanks to its electronics characteristic curve. The active current limitation improves the capacity of the upstream power supply, while the integrated floating remote indication contact enhances system transparency. The device also allows for remote reconnection with a reset function, simplifying maintenance and troubleshooting. It is suitable for applications requiring precise current control and reliable protection against overloads and short circuits.
Phoenix Contact ECPE36A Electronic Circuit Breaker Specifications:
- Number of positions: 1
- Connection method: Screw connection
- Width: 12.5 mm
- Fuse type: Automatic device
- Mounting type: on base element
- Color: black
- Overvoltage category: II
- Insulating material: PA66/6
- Flammability rating according to UL 94: V0
- Rated surge voltage: 0.5 kV
- Operating voltage: 24 V DC
- Nominal current IN: 6 A
- Required backup fuse: not required, integrated failsafe element
- Dielectric strength: max. 32 V DC (Load circuit)
- Degree of pollution: 2
- Insulating material group: I
- Switching capacity ICN: Active current limitation
- Closed-circuit current range I0: typ. 25 mA ±5 mA (When switched on)
- Height: 60 mm
- Depth: 70 mm
- Height NS 35/7,5: 144 mm
- Height NS 35/15: 151.5 mm
- Complete module height: 115 mm
- Complete module width: 38 mm
- Complete module depth: 112.5 mm
- Degree of protection: IP30 (Actuation area)
- Ambient temperature (operation): 0 °C ... 50 °C (non-condensing)
- Standards/specifications: UL 2367, UL 508, CSA 22.2 No. 14
- REACh SVHC: Lead 7439-92-1
- China RoHS: Environmentally Friendly Use Period = 25;
