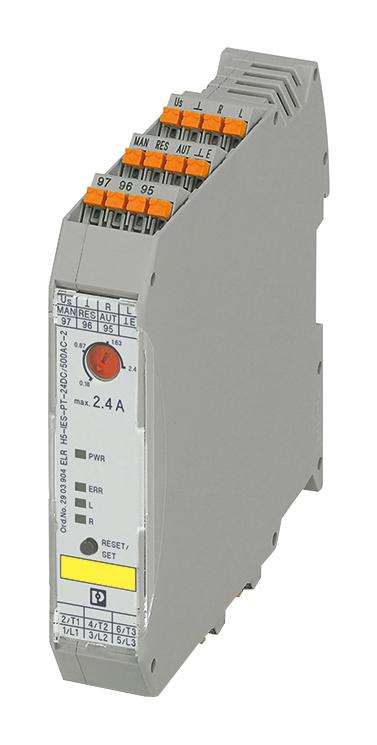

Phoenix Contact ELRH5IESPT24DC500AC2 Hybrid Motor Starter
The hybrid motor starter provides reliable reversing control for 3-phase AC motors up to 500 V AC and 2.4 A current, featuring 24 V DC control voltage, adjustable overload shutdown, emergency stop function, and SIL 3/PL e safety levels. Its compact 22.5mm width, robust design, and push-in connection make it ideal for space-saving industrial automation applications. This device ensures safe, efficient motor control with high environmental protection, conforming to strict safety standards and suitable for complex control systems in demanding environments.
Phoenix Contact ELRH5IESPT24DC500AC2 Hybrid Motor Starter Specifications:
- Dimensions: Width 22.5mm, Height 99mm, Depth 114.5mm
- Ambient temperature (operation): -25°C to 70°C (derating applies)
- Ambient temperature (storage/transport): -40°C to 80°C
- Degree of protection: IP20
- Rated control circuit voltage: 24 VDC
- Control voltage range: 19.2V DC to 30 V DC
- Rated control current: 40 mA
- Input actuating voltage: 24V DC
- Input actuating current: 5 mA
- Switching threshold: 9.6 V (0 signal), 19.2V (1 signal)
- Output voltage: 500 VAC, operating range 42 VAC to 550 V AC
- Load current range: 180 mA to 2.4 A
- Rated operating current at AC-51 and AC-53a: 24A
- Load capacity: 3 A at 230 V (IEC 60947-5-1), 2 A at 24 V DC
- Insulation voltage: 500 V, Surge voltage: 6 KV
- Control and load connection: Push-in, 0.2 mm² to 2.5 mm² conductor cross-section
- Operating mode: 100% operating factor, standard IEC certifications
- Safety level: SIL 3/PL e, compliant with IEC standards
- Certifications: UL, cUL, EAC, ATEX, IEC 61508, ISO 13849
Buy the Phoenix Contact ELR H5-IES-PT 24DC/500AC-2 – Reliable Motor Control for Industrial Applications
Purchase the Phoenix Contact hybrid motor starter online today to ensure reliable reversing control for 3-phase motors up to 500 V AC and 2.4 A current. Designed with safety levels SIL 3 and PL e, it features a compact 22.5mm width, push-in connections, and adjustable overload protection, making it ideal for industrial automation systems. Easily install and connect with its robust design and comply with global safety standards. Order now for high-performance motor control solutions that guarantee safety, efficiency, and space efficiency in demanding industrial environments.
Get Phoenix Contact ELR H5-IES-PT 24DC/500AC-2 today—built for precision, space-saving, and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy Phoenix Contact ELRH5IESPT24DC500AC2?
You can click on the BUY or RFQ button to purchase ELRH5IESPT24DC500AC2 from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part ELRH5IESPT24DC500AC2?
You can download the ELRH5IESPT24DC500AC2 datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of ELRH5IESPT24DC500AC2?
Phoenix Contact
