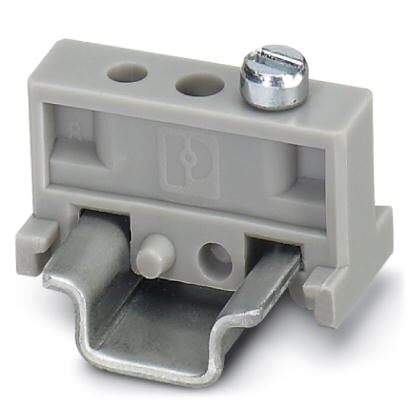

Phoenix Contact EMBK End Clamp Terminal Block
The Phoenix Contact E/MBK end clamp is a crucial component for terminal block systems. Designed for secure and reliable termination, it offers versatility in mounting options, allowing for attachment to NS 15 DIN rails or direct mounting on mounting plates as an MBK terminal block base. Its robust PA construction and V2 flammability rating ensure durability and safety in various industrial applications. The clamp facilitates large-surface labeling for easy identification and organization within electrical systems.
Phoenix Contact EMBK End Clamp Terminal Block Specifications:
- Height: 11.4 mm
- Length: 22 mm
- Width: 6.2 mm
- Material: PA
- Coating: 3.2 mm fixing hole
- Color: gray
- Tightening torque, min: 0.4 Nm
- Tightening torque max: 0.5 Nm
- Flammability rating according to UL 94: V2
- eCl@ss 4.0: 27141199
- eCl@ss 4.1: 27141199
- eCl@ss 5.0: 27141135
- eCl@ss 5.1: 27141145
- eCl@ss 6.0: 27141135
- eCl@ss 7.0: 27141135
- eCl@ss 8.0: 27141135
- ETIM 2.0: EC000761
- ETIM 3.0: EC001041
- ETIM 4.0: EC001041
- ETIM 5.0: EC001041
- UNSPSC 6.01: 30212109
- UNSPSC 7.0901: 39121708
- UNSPSC 11: 39121708
- UNSPSC 12.01: 39121708
- UNSPSC 13.2: 39121708
Buy the E/MBK PHOENIX CONTACT End Clamp Terminal Block | myMectronic
Purchase the Phoenix Contact E/MBK End Clamp securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Phoenix Contact EMBK?
You can click on the BUY or RFQ button to purchase EMBK from an authorized Phoenix Contact distributor.
How do I troubleshoot issues or seek technical support for part EMBK?
You can download the EMBK datasheet or visit the Phoenix Contact website for support.
Who is the manufacturer of EMBK?
Phoenix Contact
