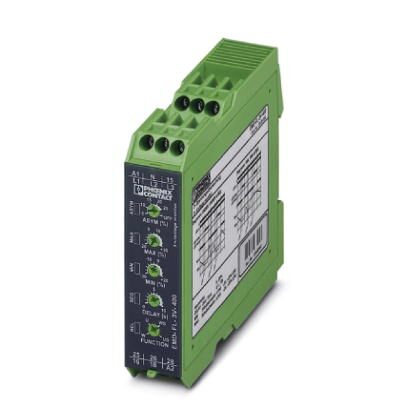

Phoenix Contact EMDFL3V400 3-Phase Voltage Monitoring Relay
The PHOENIX CONTACT EMD-FL-3V-400 is a versatile monitoring relay crucial for maintaining safety and system availability across various industries, including mechanical engineering, chemical processing, and automation technology. It continuously monitors 3-phase voltages, providing protection against undervoltage, phase sequence errors, phase failure, and asymmetry. The relay features adjustable settings via a front potentiometer, a wide-range power supply, and a floating contact for system shutdown or control. Its robust design and compliance with EMC and LV directives make it suitable for demanding industrial environments. The relay's ability to tolerate measured values outside the set monitoring range through adjustable response delays further enhances its reliability and adaptability.
Phoenix Contact EMDFL3V400 3-Phase Voltage Monitoring Relay Specifications:
- Utilization restriction: EMC: class A product, see manufacturer's declaration
- Width: 22.5 mm
- Height: 90 mm
- Depth: 113 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Nominal input voltage UN: 3 N ~ 400/230 V
- Maximum temperature coefficient: < 0.1 %/K
- Function: Undervoltage, window, asymmetry, phase sequence, phase failure
- Min. setting range: -30 % ... 20 % (From UN)
- Max. setting range: -20 % ... 30 % (From UN)
- Min setting range of the voltage threshold value: 280 V AC ... 480 V AC
- Max. setting range of the voltage threshold value: 320 V AC ... 520 V AC
- Setting range for response delay: 0.1 s ... 10 s
- Basic accuracy: ± 5 % (of scale end value)
- Setting accuracy: ≤ 5 % (of scale end value)
- Repeat accuracy: ≤ 2 %
- Asymmetry: 5 % ... 25% / OFF
- Recovery time: 500 ms
- Contact type: 2 floating PDT contacts
- Maximum switching voltage: 250 V AC
- Interrupting rating (ohmic load) max.: 750 VA
- Output fuse: 5 A (fast-blow)
- Supply voltage range: 24 V AC ... 240 V AC -15 % ... +10 %
- Mechanical service life: Approx. 2 x 10^7 cycles
- Operating mode: 100% operating factor
- Mounting position: any
- Conductor cross section flexible min.: 0.25 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 14
- Stripping length: 8 mm
- Connection method: Screw connection
- Noise emission: EN 61000-6-4
- Noise immunity: EN 61000-6-2
- Overvoltage category: III
- Housing insulation material: Polyamide PA
- Color: green
- Rated insulation voltage: 300 V
- UL, USA / Canada: UL/C-UL listed UL 508
