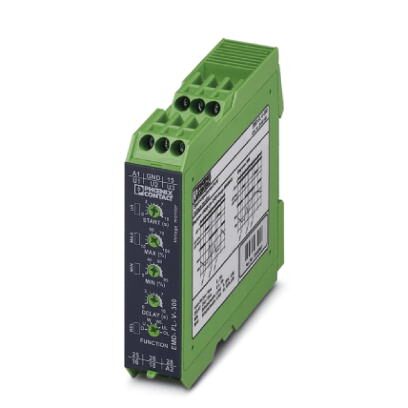

Phoenix Contact EMDFLV300 Monitoring Relay
The PHOENIX CONTACT EMD-FL-V-300 monitoring relay provides continuous monitoring of critical network and system parameters to prevent errors or limit their impact. It's ideal for applications in mechanical engineering, chemical industry, and automation technology where safety and system availability are paramount. The relay offers adjustable settings via a front potentiometer, a variable supply voltage range, and floating contacts for system shutdown or control signaling. Its robust design and compliance with industry standards ensure reliable performance in demanding industrial environments.
Phoenix Contact EMDFLV300 Monitoring Relay Specifications:
- Packing unit: 1 pc
- Weight per Piece (excluding packing): 169.4 g
- Custom tariff number: 85364900
- Country of origin: Austria
- Width: 22.5 mm
- Height: 90 mm
- Depth: 113 mm
- Ambient temperature (operation): -25 °C ... 55 °C
- Ambient temperature (storage/transport): -25 °C ... 70 °C
- Input voltage range: 0 V ... 30 V AC/DC (U1 and GND)
- Input voltage range 2: 0 V ... 60 V AC/DC (U2 and GND)
- Input voltage range 3: 0 V ... 300 V AC/DC (U3 and GND)
- Maximum temperature coefficient: < 0.1 %/K
- Function: Undervoltage, overvoltage, window, error memory
- Min. setting range: 5 % ... 95 % (From UN)
- Max. setting range: 10 % ... 100 % (From UN)
- Setting range for response delay: 0.1 s ... 10 s
- Setting range for starting delay: 0 s ... 10 s
- Basic accuracy: ± 5 % (of scale end value)
- Setting accuracy: ≤ 5 % (of scale end value)
- Repeat accuracy: ≤ 2 %
- Recovery time: 500 ms
- Contact type: 2 floating PDT contacts
- Maximum switching voltage: 250 V AC (in acc. with IEC 60664-1)
- Interrupting rating (ohmic load) max.: 750 VA (3 A/250 V AC, module aligned, ≤ 5 mm spacing)
- Interrupting rating (ohmic load) max. 2: 1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing)
- Output fuse: 5 A (fast-blow)
- Supply voltage range: 24 V AC ... 240 V AC -15 % ... +10 %
- Supply voltage range 2: 24 V DC ... 240 V DC -20 % ... +25 %
- Mechanical service life: Approx. 2 x 10^7 cycles
- Operating mode: 100% operating factor
- Mounting position: any
- Assembly instructions: on standard DIN rail NS 35 in accordance with EN 60715
- Electromagnetic compatibility: Conformance with EMC Directive 2004/108/EC
- Overvoltage category: III, basic insulation (as per EN 50178)
- Housing insulation material: Polyamide PA, self-extinguishing
- Color: green
- Rated insulation voltage: 300 V (According to EN 50178)
- Conformance: CE-compliant
- UL, USA / Canada: UL/C-UL listed UL 508
- Conductor cross section flexible min.: 0.25 mm²
- Conductor cross section flexible max.: 2.5 mm²
- Conductor cross section solid min.: 0.5 mm²
- Conductor cross section solid max.: 2.5 mm²
- Conductor cross section AWG min.: 20
- Conductor cross section AWG max.: 14
- Stripping length: 8 mm
- Connection method: Screw connection
- eCl@ss 4.0: 27371105
- eCl@ss 4.1: 27371105
- eCl@ss 5.0: 27371801
- eCl@ss 5.1: 27371801
- eCl@ss 6.0: 27371801
- eCl@ss 7.0: 27371801
- eCl@ss 8.0: 27371801
- ETIM 2.0: EC001438
- ETIM 3.0: EC001438
- ETIM 4.0: EC001438
- ETIM 5.0: EC001438
- UNSPSC 6.01: 30211916
- UNSPSC 7.0901: 39121535
- UNSPSC 11: 39121535
- UNSPSC 12.01: 39121535
- UNSPSC 13.2: 39121535
