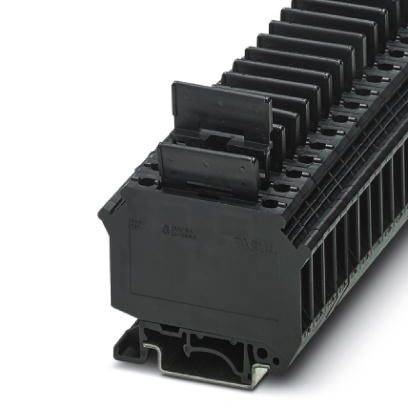

Phoenix Contact 3118096 Fuse Modular Terminal Block
The Phoenix Contact UK-SI BU fuse modular terminal block provides a secure and reliable connection for cartridge fuses, specifically designed for 5x20 and 5x25 fuse sizes. This terminal block is ideal for applications requiring overcurrent protection, such as power distribution systems, industrial machinery, and control panels. Its robust construction and secure screw connection ensure a stable and long-lasting connection, while the fuse provides protection against damage caused by excessive current. The terminal block's modular design allows for easy integration into existing terminal strips, simplifying installation and maintenance.
Phoenix Contact 3118096 Fuse Modular Terminal Block Specifications:
- Number of levels: 1
- Number of connections: 2
- Nominal cross section: 4 mm²
- Color: blue
- Insulating material: PA
- Flammability rating according to UL 94: V0
- Fuse: G / 5 x 20 / 5 x 25
- Fuse type: Glass / ceramics / ...
- Rated surge voltage: 4 kV
- Degree of pollution: 3
- Overvoltage category: III
- Insulating material group: I
- Connection in acc. with standard: IEC 60947-7-3
- Maximum load current: 6.3 A (is determined by the fuse used)
- Nominal current IN: 6.3 A
- Nominal voltage UN: 400 V (As a fuse terminal block) / 400 V (As a disconnect terminal block)
- Open side panel: No
- Width: 8.2 mm
- Length: 59.5 mm
- Height NS 35/7,5: 58 mm
- Height NS 35/15: 65.5 mm
- Height NS 32: 63 mm
- Conductor cross section solid min.: 0.2 mm²
- Conductor cross section solid max.: 4 mm²
- Conductor cross section flexible min.: 0.2 mm²
- Conductor cross section flexible max.: 4 mm²
- Conductor cross section AWG min.: 24
- Conductor cross section AWG max.: 12
- Conductor cross section flexible, with ferrule without plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule without plastic sleeve max.: 4 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve min.: 0.25 mm²
- Conductor cross section flexible, with ferrule with plastic sleeve max.: 4 mm²
- 2 conductors with same cross section, solid min.: 0.2 mm²
- 2 conductors with same cross section, solid max.: 1.5 mm²
- 2 conductors with same cross section, stranded min.: 0.2 mm²
- 2 conductors with same cross section, stranded max.: 1.5 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve min.: 0.25 mm²
- 2 conductors with same cross section, stranded, ferrules without plastic sleeve max.: 1.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve min.: 0.5 mm²
- 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve max.: 2.5 mm²
- Connection method: Screw connection
- Stripping length: 9 mm
- Internal cylindrical gage: A4
- Screw thread: M3
- Tightening torque, min: 0.6 Nm
- Tightening torque max: 0.8 Nm
- eCl@ss 4.0: 27141116
- eCl@ss 4.1: 27141116
- eCl@ss 5.0: 27141116
- eCl@ss 5.1: 27141116
- eCl@ss 6.0: 27141116
- eCl@ss 7.0: 27141116
- eCl@ss 8.0: 27141116
- ETIM 2.0: EC000899
- ETIM 3.0: EC000899
- ETIM 4.0: EC000899
- ETIM 5.0: EC000899
- UNSPSC 6.01: 30211812
- UNSPSC 7.0901: 39121411
- UNSPSC 11: 39121411
- UNSPSC 12.01: 39121411
- UNSPSC 13.2: 39121411
